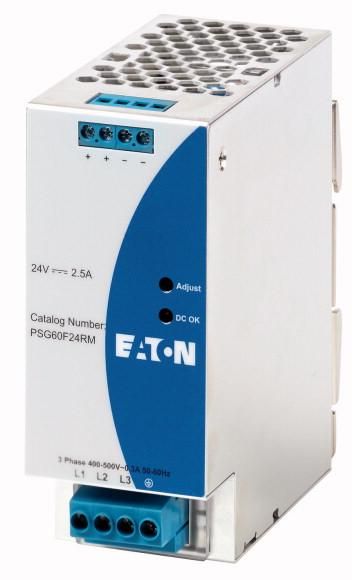

Eaton PSG60F24RM 3-phase 3x400-500VAC 2.5A power supply, 172882

Description

Features

Reviews

Power supply unit, range: PSG power supplies, sub-range: Power supply unit, description: Power boost through 1.5 times the rated current for 5 s, PELV (EN 60204), SELV (EN 60950), width: 50 mm, height: 121 mm, depth: 117.3 mm, 3-phase, input voltage range: 320 - 600 V AC, (450 - 800 V DC), rated input voltage: 3 x 400 - 500 V AC, rated output voltage: 24 V DC (2%), rated output current: 2.5 A, output voltage adjustment range: 24 - 28 V DC, rated output power: 60 W, protection class: IP20, power loss: 9.8 W

Property	Value
Installation height:	121 mm
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	2.5 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	320 to 600 V
Rated supply voltage at AC 60 Hz:	320 to 600 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	yes
Power consumption:	120 VA
Power output:	60 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	50 mm
Height:	121 mm
Depth:	117 mm
Nominal value output voltage 1:	24 V
Rated output current 1:	2.5 A
Installation width:	50 mm
SIL according to IEC 61508:	without
Protection class (NEMA):	1
