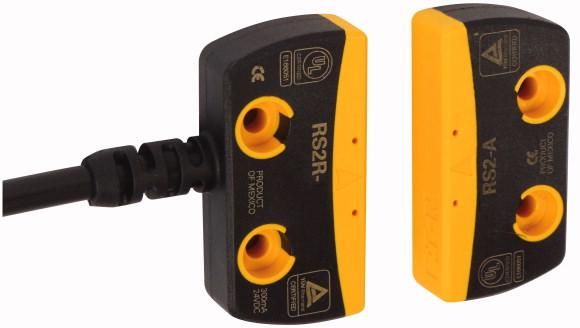

Non-contact safety switch, switching distance according to IEC 60947-5-2, SL up to Ple ISO 13849, SL up to SIL3 according to IEC 62061, 1NO, 2NC, 3m cable
Property | Value |
Design of the interface for safety-related communication: | without |
Suitable for safety functions: | yes |
Protection class (IP): | IP67 |
Housing material: | plastic |
With status display: | no |
Ambient temperature during operation: | -10 to 55 °C |
Explosion protection category for dust: | without |
Width of the sensor: | 26 mm |
Length of the sensor: | 52 mm |
Design of the electrical connection: | pre-assembled with cable |
Number of contacts as normally open: | 1 |
Number of contacts as normally closed: | 2 |
Design of the interface: | without |
Forced opening: | no |
Design of the switching element: | other |
Number of safety-related auxiliary contacts: | 2 |
Rated operating current Ie at DC-13, 24 V: | 0.3 A |
Explosion protection category for gas: | without |
Housing design: | Cuboid |
Height of sensor: | 13 mm |
Housing coating: | plastic coated |
Protection class (NEMA): | other |
Features
HAB
RS2R-12-C3
Manufacturer
HAN
177294
GTIN
4015081717477
Number of contacts as normally open
1
Number of contacts as opener
2
Number of safety-related auxiliary contacts
2
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the electrical connection
Pre-assembled with cable
Rated operating current Ie at DC-13, 24 V
0.3A
Housing coating
Plastic coated
Width of the sensor
26 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Housing design
Cuboid
Height of the sensor
13 mm
Length of the sensor
52 mm
With status display
No
IP protection)
IP67
Protection class (NEMA)
Other
Ambient temperature during operation
-10 to 55 °C
Housing material
Plastic
Forced opening
No
