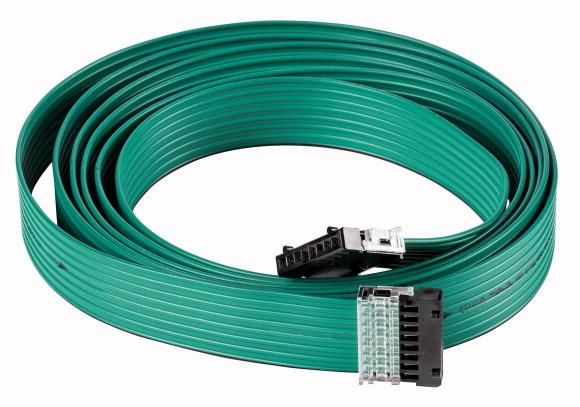

8-pin SmartWire-DT flat cable for connecting the SWD participants within the control cabinet, 3 m long, assembled with 2 flat plugs SWD4-8MF2
| Property | Value |
| Number of cores: | 8 |
| Outer diameter approx.: | 17.5 mm |
| Conductor class: | Class 2 = multi-wire |
| Stranding element: | no |
| Core marking: | Color |
| Shield over stranding element: | without |
| Category: | other |
| Flame retardant: | according to EN 60332-1-2 |
| Low smoke according to EN 61034-2: | no |
| Sheath color: | green |
| Nominal conductor cross-section: | 0.23 mm² |
| Conductor diameter: | 1.35 mm |
| Stranding: | other |
| Material of the core insulation: | Polyvinyl chloride (PVC) |
| Shield over stranding: | without |
| Conductor surface: | tinned |
| Protective jacket: | other |
| Jacket material: | Polyvinyl chloride (PVC) |
| Halogen-free according to EN 60754-1/2: | no |
| Halogen-free according to IEC 60754-2: | no |
| Low smoke according to IEC 61034-2: | no |
| Oil resistant according to EN 60811-404: | no |
| Oil resistant according to IEC 60811-404: | no |
| Insulation integrity according to IEC 60331: | no |
| Permissible external cable temperature during assembly/handling: | -10 to 105 °C |
| Permissible Cable external temperature after installation without vibration: | -30 to 105 °C |
| NVP value: | 66.7 % |
| Specification of core insulation: | other |
| Cable longitudinally watertight: | no |
| Cable transversely watertight: | no |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | without |
| Smoke development class according to EN 13501-6: | without |
| Drip behavior class according to EN 13501-6: | without |
| Acid development class according to EN 13501-6: | without |
| Min. permissible bending radius, flexible use with forced guidance: | 15 mm |
| Min. permissible bending radius, flexible use/free movement: | 15 mm |
| Min. permissible bending radius, stationary use/permanently installed: | 7.5 mm |
| Laying in the ground: | no |
| UV-resistant: | no |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
17.5 mm
Oil-resistant according to EN 60811-404
No
Category
Other
Conductor nominal cross section
0.23 mm²
Conductor diameter
1.35 mm
HAB
SWD4-3LF8-24-2S
Manufacturer
HAN
116027
GTIN
4015081157679
Wire number
8
Leader Class
Kl.2 = stranded
Coat color
Green
UV-resistant
No
