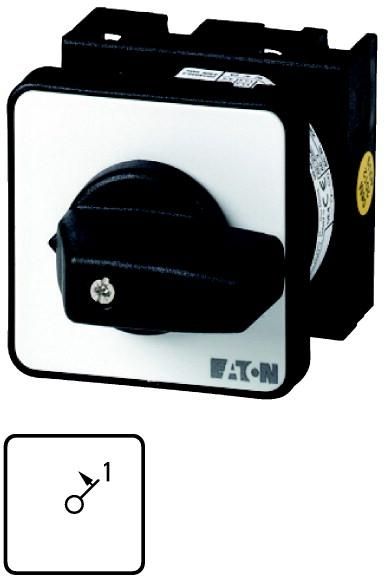

ON button, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Switch disconnector according to IEC/EN 60947-3, Type reference: T0, with black knob and front plate, Contacts: 1, Push-button function: Push-button function in position 1, Degree of protection: Front IP65, Design: Central installation, Switching angle: 45 °, Switching behavior: Momentary, with retraction of 1, 1 component(s), Rated continuous current: Iu= 20 A, Front plate: I
| Property | Value |
| Rated continuous current Iu: | 20 A |
| Number of poles: | 1 |
| Number of switching positions: | 1 |
| Degree of protection (IP), front: | IP65 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | no |
| With return to zero position: | no |
| Device design: | Built-in device |
| Design of the actuating element: | Toggle |
| Complete device in housing: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Suitable for front mounting: | yes |
| Front plate size: | 48x48 mm |
| Suitable for floor mounting: | no |
| Switch design: | On/off switch |
| NEMA protection class, front: | 12 |
Features
HAB
T0-1-15321/EZ
Manufacturer
HAN
088690
GTIN
4015080886907
Number of switching positions
1
Design of the actuating element
Gag
Design of the switch
On/off switch
Rated continuous current Iu
20A
Front shield size
48x48 mm
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Built-in device
Complete device in housing
No
Max. rated operating voltage Ue at AC
690V
With zero setting
No
With retraction to zero position
No
NEMA protection class, front
12
Number of poles
1
Protection class (IP), front
IP65
