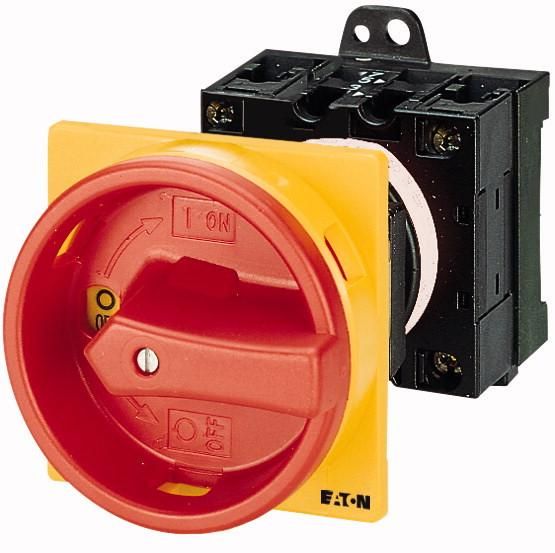

Main switch, product range: main switch, maintenance switch, repair switch, type code: T0, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, 3-pole, lockability: lockable in 0 position, protection class: front IP65, design: intermediate installation, switching angle: 90 °, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: Iu = 20 A, 2 unit(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 5.5 kW |
| Rated continuous current Iu: | 20 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | yes |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | Screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | Door coupling rotary drive |
| Suitable for floor mounting: | yes |
| Conditional rated short-circuit current Iq: | 6 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 0.32 kA |
| Color of the actuating element: | red |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Switching capacity at 400 V: | 5.5 kW |
| Rated continuous current at AC-21, 400 V: | 20 A |
| Number of Switch: | 1 |
| Protection class (NEMA): | 12 |
Features
HAB
T0-2-1/V/SVB
Manufacturer
HAN
043619
GTIN
4015080436195
Connection type main circuit
Screw connection
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
Yes
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Door coupling rotary drive
Conditional rated short-circuit current Iq
6kA
Rated operational power at AC-23, 400 V
5.5kW
Rated operational power at AC-3, 400 V
5.5kW
Rated operating voltage
690V
Rated continuous current Iu
20A
Rated continuous current at AC-21, 400 V
20A
Rated short-time withstand current Icw
0.32kA
Color of the actuator
Red
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
Yes
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Switching capacity at 400 V
5.5kW
Protection class (IP), front
IP65
Protection class (NEMA)
12
Voltage release optional
No
Lockable
Yes
