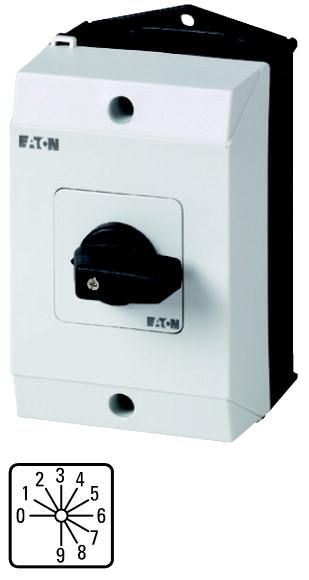

Coding switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Switch disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 8, Protection class: IP65, Design: Surface mounting, Switching function: Dual BCD code 0-9, Switching angle: 30 °, Switching behavior: latching, with 0 position, 4 component(s), Rated continuous current: Iu= 20 A, Front plate: 0-9
| Property | Value |
| Rated continuous current Iu: | 20 A |
| Number of switching positions: | 10 |
| Protection class (IP), front: | IP65 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | yes |
| With return to zero position: | no |
| Device design: | Surface-mounted device |
| Design of the actuating element: | Toggle |
| Complete device in housing: | yes |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Suitable for front mounting: | no |
| Front plate size: | 48x48 mm |
| Suitable for floor mounting: | yes |
| Switch design: | coding switch |
| NEMA protection class, front: | 12 |
Features
HAB
T0-4-15602/I1
Manufacturer
HAN
207134
GTIN
4015082071349
Number of switching positions
10
Design of the actuating element
Gag
Design of the switch
Coding switch
Rated continuous current Iu
20A
Front shield size
48x48 mm
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Construction device
Complete device in housing
Yes
Max. rated operating voltage Ue at AC
690V
With zero setting
Yes
With retraction to zero position
No
NEMA protection class, front
12
Protection class (IP), front
IP65
