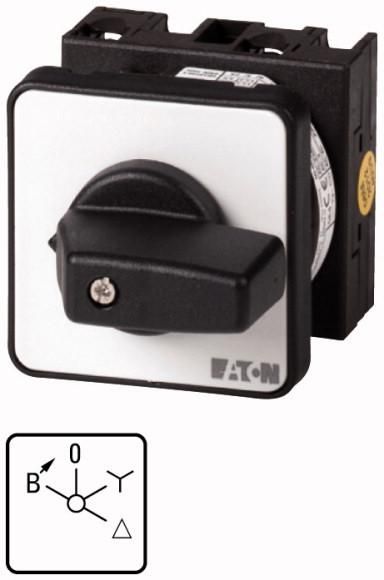

Star-delta switch, product range: control switch, type code: T0, with black knob and front plate, contacts: 10, protection class: front IP65, design: flush-mounted, switching angle: 60 °, switching behavior: latching, with 0 position, with return to 0, front plate: B>0-YD, rated operating power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated continuous current: Iu = 20 A, 5 unit(s), standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, load-break switch according to IEC/EN 60947-3
| Property | Value |
| Design: | Star-delta switch |
| Number of poles: | 3 |
| Rated continuous current Iu: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 11.5 A |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Complete device in housing: | no |
| With zero position: | yes |
| Design of the actuating element: | short rotary handle |
| Connection type main circuit: | Screw connection |
| Suitable for intermediate installation: | no |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | no |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | yes |
| NEMA protection class, front: | 12 |
| Housing material: | Plastic |
Features
HAB
T0-5-15892/E
Manufacturer
HAN
014310
GTIN
4015080143109
Connection type main circuit
Screw connection
Version
Design of the actuating element
Short twist grip
Rated operational power at AC-3, 400 V
5.5kW
Rated operational current Ie at AC-3, 400 V
11.5A
Rated continuous current Iu
20A
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Complete device in housing
No
With zero setting
Yes
With retraction to zero position
Yes
NEMA protection class, front
12
Number of poles
3
Protection class (IP), front
IP65
Housing material
Plastic
