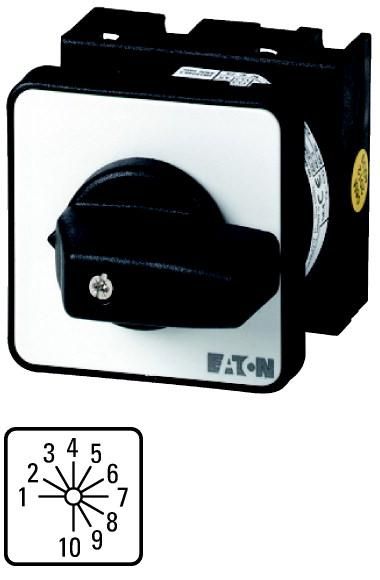

Step switch, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 10, Degree of protection: Front IP65, Design: Flush-mounted, Switching angle: 30 °, Switching behavior: latching, without 0 position, 5 Unit(s), Rated continuous current: Iu= 20 A, Front plate: 1-10
| Property | Value |
| Rated continuous current Iu: | 20 A |
| Number of poles: | 1 |
| Number of switching positions: | 10 |
| Degree of protection (IP), front: | IP65 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | no |
| With return to zero position: | no |
| Device design: | Built-in device |
| Design of the actuating element: | Toggle |
| Complete device in housing: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Suitable for front mounting: | yes |
| Front plate size: | 48x48 mm |
| Suitable for floor mounting: | no |
| Switch design: | Step switch |
| NEMA protection class, front: | 12 |
Features
HAB
T0-5-8237/E
Manufacturer
HAN
057194
GTIN
4015080571940
Number of switching positions
10
Design of the actuating element
Gag
Design of the switch
Step switch
Rated continuous current Iu
20A
Front shield size
48x48 mm
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Built-in device
Complete device in housing
No
Max. rated operating voltage Ue at AC
690V
With zero setting
No
With retraction to zero position
No
NEMA protection class, front
12
Number of poles
1
Protection class (IP), front
IP65
