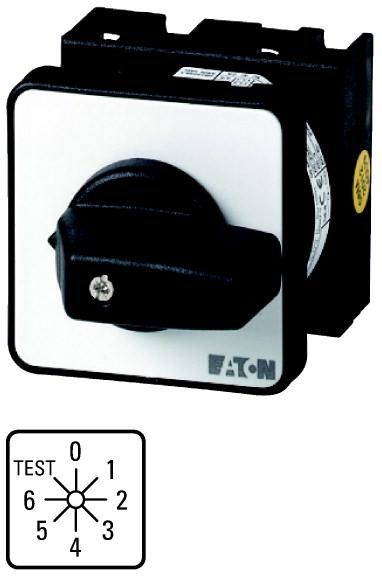

Measuring point switch, contacts: 14, 20 A, front plate: 6-TEST-OFF-1-2-3-4-5, 45 °, latching, installation
Eaton Type: T0-7-8076/E
Eaton Article No.: 015969
| Property | Value |
| Design: | On/off switch |
| Number of poles: | 6 |
| Rated continuous current Iu: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 11.5 A |
| Rated operating power at AC-3, 400 V: | 4 kW |
| Complete device in housing: | no |
| With zero position: | no |
| Design of the actuating element: | toggle |
| Connection type Main circuit: | Screw connection |
| Suitable for intermediate installation: | no |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | no |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | no |
| Protection class (NEMA), front: | 12 |
| Housing material: | Plastic |
Features
HAB
T0-7-8076/E
Manufacturer
HAN
015969
GTIN
4015080159698
Connection type main circuit
Screw connection
Version
Design of the actuating element
Gag
Rated operational power at AC-3, 400 V
4kW
Rated operational current Ie at AC-3, 400 V
11.5A
Rated continuous current Iu
20A
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Complete device in housing
No
With zero setting
No
With retraction to zero position
No
Number of poles
6
Protection class (IP), front
IP65
Protection class (NEMA), front
12
Housing material
Plastic
