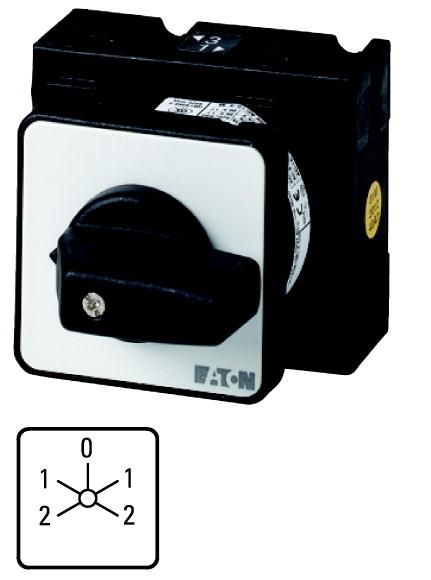

Reversing pole changeover switch, Product range: Control switch, Type reference: T3, with black knob and front plate, Contacts: 12, Protection class: Front IP65, Design: Built-in, Switching function: Dahlander circuit, 2 speeds, Switching angle: 66 °, Switching behavior: latching, with 0 position, Front plate: 2-1-0-1-2, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated continuous current: Iu = 32 A, 6 component(s), Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Load disconnector according to IEC/EN 60947-3
| Property | Value |
| Design: | Reversing Dahlander switch |
| Number of poles: | 3 |
| Rated continuous current Iu: | 32 A |
| Rated operating current Ie at AC-3, 400 V: | 23.7 A |
| Rated operating power at AC-3, 400 V: | 12 kW |
| Complete device in housing: | no |
| With zero position: | yes |
| Design of the actuating element: | short rotary handle |
| Connection type main circuit: | Screw connection |
| Suitable for intermediate installation: | no |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | no |
| Suitable for floor mounting: | no |
| Protection class (IP), front: | IP65 |
| With retraction to zero position: | no |
| NEMA protection class, front: | 12 |
| Housing material: | Plastic |
Features
HAB
T3-6-66/E
Manufacturer
HAN
004373
GTIN
4015080043737
Connection type main circuit
Screw connection
Version
Design of the actuating element
Short twist grip
Rated operational power at AC-3, 400 V
12kW
Rated operational current Ie at AC-3, 400 V
23.7A
Rated continuous current Iu
32 A
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Complete device in housing
No
With zero setting
Yes
With retraction to zero position
No
NEMA protection class, front
12
Number of poles
3
Protection class (IP), front
IP65
Housing material
Plastic
