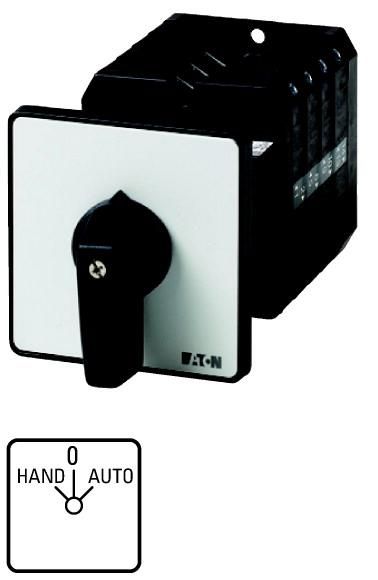

Changeover switch, contacts: 2, 63 A, front plate: HAND-0-AUTO, 45 °, latching, intermediate installation
Eaton Type: T5B-1-15431/Z
Eaton Article No.: 094372
| Property | Value |
| Rated continuous current Iu: | 63 A |
| Number of poles: | 1 |
| Number of switching positions: | 3 |
| Degree of protection (IP), front: | IP65 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | yes |
| With return to zero position: | no |
| Device design: | Built-in device |
| Design of the actuating element: | Toggle |
| Complete device in housing: | no |
| Suitable for intermediate installation: | yes |
| Suitable for distribution board installation: | no |
| Suitable for front mounting: | no |
| Front plate size: | 88x88 mm |
| Suitable for floor mounting: | yes |
| Switch design: | Changeover switch |
| Protection class (NEMA), front: | 12 |
Features
HAB
T5B-1-15431/Z
Manufacturer
HAN
094372
GTIN
4015080943723
Number of switching positions
3
Design of the actuating element
Gag
Design of the switch
Switch
Rated continuous current Iu
63 A
Front shield size
88x88 mm
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for distribution board installation
No
Suitable for intermediate construction
Yes
Device type
Built-in device
Complete device in housing
No
Max. rated operating voltage Ue at AC
690V
With zero setting
Yes
With retraction to zero position
No
Number of poles
1
Protection class (IP), front
IP65
Protection class (NEMA), front
12
