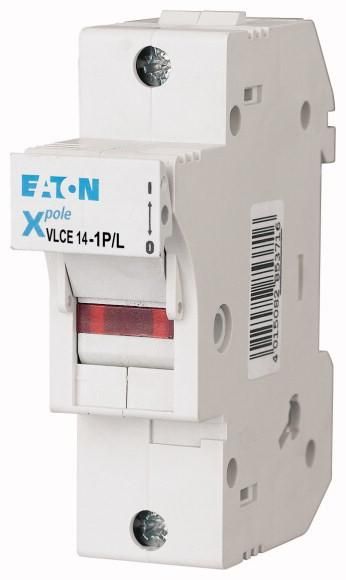

Fuse switch disconnector, the flashing function signals the triggered fuse link, sealable, supply possible from both sides, version /L with flashing function, suitable for cylindrical fuses operating class gG, aM, delivery without fuses, versions according to IEC/EN 60947-3
| Property | Value |
| Rated continuous current Iu: | 50 A |
| Protection class (IP), front: | IP20 |
| Number of poles: | 2 |
| Design as main switch: | no |
| Design of the actuating element: | toggle lever |
| Type of connection main circuit: | screw connection |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | yes |
| With fuse monitoring: | no |
| Designed as an EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 100 kA |
| Designed as a safety switch: | yes |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | no |
| Suitable for fuse links: | 14x51 mm |
| Position of the actuating element: | front |
| Integrated motor drive: | no |
| Rated short-time withstand current Icw: | 0.6 kA |
| Optional motor drive: | no |
| Cable entry: | other |
| Equipped with connectors: | no |
Features
HAB
VLCE14-2P 50A 2-pole size 22x51
Manufacturer
HAN
192376
GTIN
4015081929276
Connection type main circuit
Screw connection
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
Yes
Design of the actuating element
Rocker arm
Conditional rated short-circuit current Iq
100kA
Rated continuous current Iu
50A
Rated short-time withstand current Icw
0.6kA
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for busbar construction
No
Suitable for fuse inserts
14x51 mm
Cable entry
Other
Max. rated operating voltage Ue at AC
690V
With fuse monitoring
No
Equipped with connectors
No
Motor drive integrated
No
Motor drive optional
No
Number of poles
2
Position of the actuator
In front
Protection class (IP), front
IP20
