Description

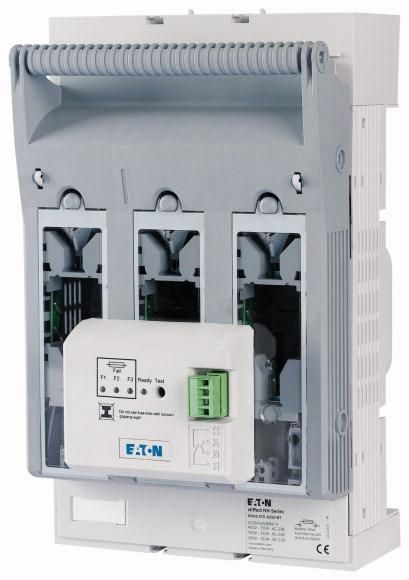

NH fuse switch disconnector 3-pole with box terminal 35 - 150 mm mounting plate electronic fuse monitoring for fuse links NH1 SmartWire ready with XNH...-SWD-KIT
| Property | Value |
| Rated continuous current Iu: | 250 A |
| Protection class (IP), front: | other |
| Number of poles: | 3 |
| Design as main switch: | no |
| Design of the actuating element: | cover handle |
| Connection type main circuit: | box terminal |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | yes |
| With fuse monitoring: | yes |
| Version as EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 120 kA |
| Version as safety switch: | no |
| Max. Rated operating voltage Ue at AC: | 500 V |
| Suitable for busbar construction: | no |
| Suitable for fuse links: | NH1 |
| Position of the actuating element: | front |
| Motor drive integrated: | no |
| Rated short-time withstand current Icw: | 6 kA |
| Motor drive optional: | no |
| Cable entry: | other |
| Equipped with connectors: | yes |
Features
HAB
XNH1-FCE-A250-BT
Manufacturer
HAN
183048
GTIN
4015081779758
Connection type main circuit
Frame clamp
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Design of the actuating element
Lid handle
Conditional rated short-circuit current Iq
120kA
Rated continuous current Iu
250A
Rated short-time withstand current Icw
6kA
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for busbar construction
No
Suitable for fuse inserts
NH1
Cable entry
Other
Max. rated operating voltage Ue at AC
500V
With fuse monitoring
Yes
Equipped with connectors
Yes
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Position of the actuator
In front
Protection class (IP), front
Other
