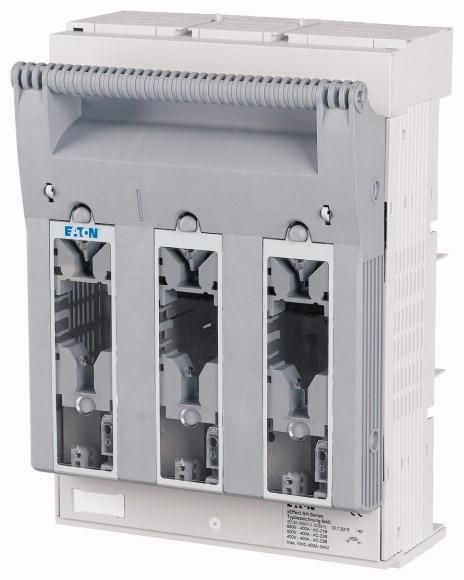

NH fuse switch disconnector, 3-pole with flat connection M10 max. 240 mm², busbar 60 mm, for fuse links NH2, optionally lockable with XNH-XLOCK and padlock, cable connection top/bottom can be converted in a matter of seconds.
| Property | Value |
| Rated continuous current Iu: | 400 A |
| Protection class (IP), front: | other |
| Number of poles: | 3 |
| Design as main switch: | no |
| Design of the actuating element: | cover handle |
| Type of connection main circuit: | screw connection |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | no |
| With fuse monitoring: | no |
| Version as EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 120 kA |
| Version as safety switch: | no |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | yes |
| Suitable for fuse links: | NH2 |
| Position of the actuating element: | front |
| Motor drive integrated: | no |
| Rated short-time withstand current Icw: | 3 kA |
| Motor drive optional: | no |
| Cable entry: | other |
| Equipped with connectors: | no |
Features
HAB
XNH2-S400 400A M10 max. 240qmm o/u
Manufacturer
HAN
183065
GTIN
4015081779925
Connection type main circuit
Screw connection
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Design of the actuating element
Lid handle
Conditional rated short-circuit current Iq
120kA
Rated continuous current Iu
400A
Rated short-time withstand current Icw
3kA
Suitable for floor mounting
No
Suitable for front mounting
No
Suitable for busbar construction
Yes
Suitable for fuse inserts
NH2
Cable entry
Other
Max. rated operating voltage Ue at AC
690V
With fuse monitoring
No
Equipped with connectors
No
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Position of the actuator
In front
Protection class (IP), front
Other
