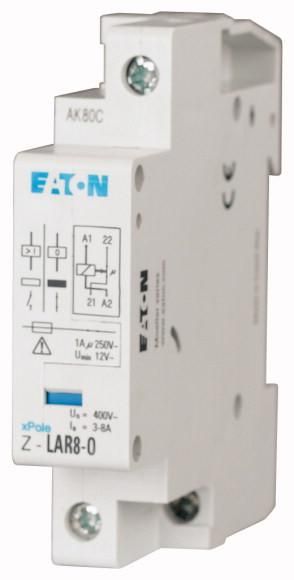

Load shedding (current) relay, simple priority switching for important consumers, for rapid current increase, effective avoidance of expensive load peaks (staggered heating), integrated auxiliary switch 1 break contact or 1 make contact or 1 changeover contact, break contact and make contact potential-free
| Property | Value |
| Rated voltage: | 250 V |
| Rated current: | 15 to 32 A |
| Response current: | 15 to 32 A |
| Max. continuous current: | 32 A |
| Rated current (control contacts): | 1 A |
| Max. switching voltage (control contacts): | 250 V |
| Max. switching capacity (control contacts): | 7.36 VA |
| Electrical service life (control contacts): | 100,000 switching cycles |
| Max. Electrical switching frequency: | 3600 c/h |
| Voltage type: | AC |
| Mounting type: | DIN rail |
| Width in pitch units: | 1 |
| Installation depth: | 60 mm |
| Protection class (IP): | IP20 |
| Number of contacts as normally open: | 1 |
Features
HAB
Z-LAR32-S
Manufacturer
HAN
248261
GTIN
4015082482619
Number of contacts as normally open
1
Rated voltage
250V
Rated current
15 to 32 A
Width in pitch units
1
Installation depth
60 mm
Mounting type
DIN rail
IP protection)
IP20
Voltage type
AC
