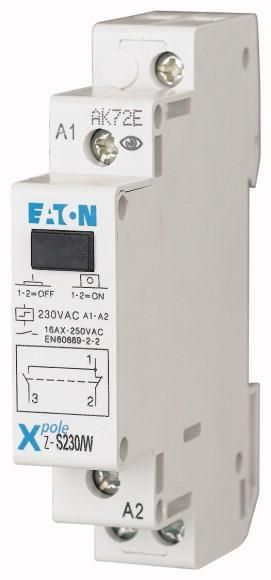

Latch switch, control voltage 230V 50Hz, function: 1 changeover contact, rated current at 250V AC according to IEC/EN 60669-2-2: 16A, cap installation dimension 45mm, installation width 1TE (17.5mm), DIN rail mounting, terminal cross-section 0.5-10 mm² single and multi-wire / 0.5-6 mm² fine-wire with wire end ferrule
| Property | Value |
| Width in modular spacing: | 1 |
| Rated switching current: | 16 A |
| Control voltage 1: | 230 V |
| Control voltage type 1: | AC |
| Control voltage type 2: | AC |
| Installation depth: | 60 mm |
| Function: | mechanical switch |
| Mounting type: | DIN rail |
| Frequency of control voltage 1: | 50 Hz |
| Type of supply voltage: | AC |
| Supply voltage: | 250 V |
| Number of contacts as changeover contact: | 1 |
Features
Type of voltage of the supply voltage
AC
Supply voltage
250 V
HAB
Z-S230/W
Minimal order
2 pieces
Manufacturer
HAN
265290
GTIN
4015082652906
Number of contacts as changeover
1
Width in pitch units
1
Installation depth
60 mm
Function
Mechanical switch
Mounting type
DIN rail
Supply voltage
250V
