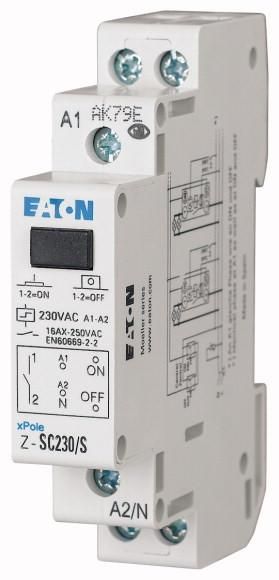

Impulse switch with central control, control voltage 240V AC, function: 3 NO contacts, rated current at 250V AC according to IEC/EN 60669-2-2: 16A, cap installation dimension 45mm, installation width 2TE (35mm), DIN rail mounting, terminal cross-section 0.5-10 mm² single and multi-wire / 0.5-6 mm² fine-wire with wire end ferrule
| Property | Value |
| Width in modular spacing: | 2 |
| Rated switching current: | 16 A |
| Control voltage 1: | 240 V |
| Control voltage type 1: | AC |
| Control voltage type 2: | AC |
| Installation depth: | 60 mm |
| Function: | mechanical for central control |
| Mounting type: | DIN rail |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Type of supply voltage: | AC |
| Supply voltage: | 240 to 415 V |
| Max. incandescent lamp load: | 1980 W |
| Max. fluorescent lamp load: | 1020 VA |
| Max. fluorescent lamp load (duo circuit): | 1820 VA |
| Max. fluorescent lamp load (parallel compensated): | 1105 VA |
| Max. Switching current (cos phi = 0.6): | 10 A |
| Number of contacts as normally open: | 3 |
Features
Type of voltage of the supply voltage
AC
Supply voltage
240 to 415 V
Max. fluorescent lamp load
1020 VA
HAB
Z-SC240/3S
Manufacturer
HAN
265320
GTIN
4015082653200
Number of contacts as normally open
3
Width in pitch units
2
Installation depth
60 mm
Function
Mechanical for central control
Mounting type
DIN rail
Supply voltage
240 to 415 V
