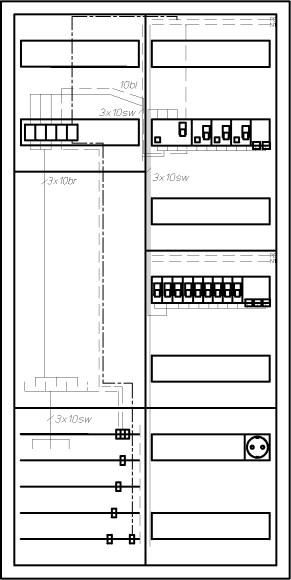

Complete meter cabinet according to AR-N 4101:2015-09, pre-wired and equipped with switching devices. Meter field equipped with 3-point meter cross, 10mm². Lower connection compartment with 5-pin. Busbar system 12x5mm, including 16mm² terminals for accommodating selective main circuit breakers up to 63 A Functional space for additional utility company applications covered with lockable blind strip RJ45 connection socket insulated, packed loose Upper connection space with main line terminal 5x25mm², finger-safe Distribution panel with 7 x 12 TE with 2x PEN rail in plug-in technology Distribution panel equipped with: 1 piece PXF-40/4/003-A 3 pieces PXK-B16/1N/003-A, connected to residual current device via phase rail EVG-3P+N/4FILS/12MODUL 8 pieces PXL-B16/1, connected via phase rail EVG-3PHAS/12MODUL 1 piece, Schuko socket 230V, installation Circuit breaker rows covered with blind strip Wiring: 10mm² between main line terminal and FI/PEN rail Connection between FI switch and circuit breaker series APZ: No (retrofitting in the distribution panel below with ZSD-APZ/V1-SET possible) Protection class: IP31 Dimensions mm: Height 1100, width 550, depth 225
| Property | Value |
| Number of meter spaces: | 1 |
| Number of distribution rows: | 7 |
| Number of fields: | 2 |
| Height: | 225 mm |
| Width: | 551 mm |
| Depth: | 1101 mm |
| Protection class (IP): | IP31 |
| Design: | 1-storey |
| Lower connection compartment: | with 5-pole busbar |
| Material: | Sheet steel |
| With mounting plate: | no |
| Mounting type: | Surface-mounted |
| Installation width: | 550 mm |
| Installation height: | 1100 mm |
| Installation depth: | 225 mm |
