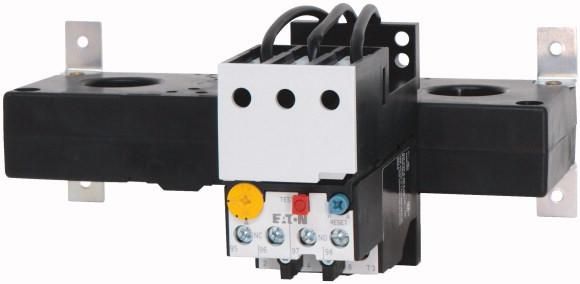

Transformer relay, Product range: Transformer relay ZW7, Description: Test/Off button, Reset button manual/auto, Trip-free, Protection against heavy starting, Mounting type: Single installation, Auxiliary switch N/O = Normally open: 1 N/O, Auxiliary switch N/C = Normally closed: 1 N/C, Standards and regulations: IEC/EN 60947,0660, UL, CSA, Protection class: IP00
| Property | Value |
| Connection type main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed: | 1 |
| Number of auxiliary contacts as normally open: | 1 |
| Adjustable current range: | 270 to 400 A |
| Mounting type: | Single installation |
| Trip class: | other |
| Max. Rated operating voltage Ue: | 690 V |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function button: | yes |
Features
Adjustable current range
270 to 400 A
Automatic reset function
Yes
Input reset function
No
Button reset function
Yes
HAB
ZW7-400 270A-400A 1S 1OE
Manufacturer
HAN
045329
GTIN
4015080453291
Connection type main circuit
Screw connection
Number of auxiliary contacts as normally open
1
Number of auxiliary contacts as normally closed
1
Trigger class
Other
Max. rated operating voltage Ue
690V
Mounting type
Itemized list
