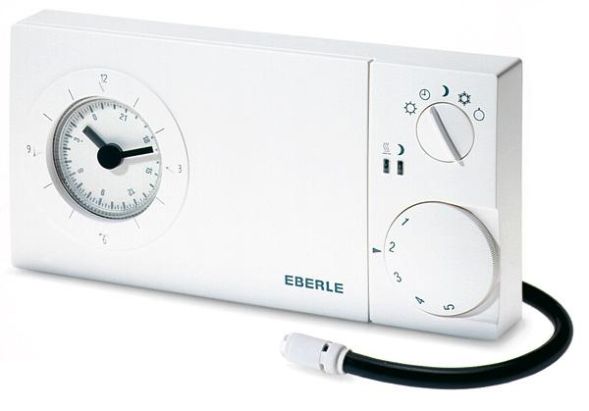

Controller with clock function (weekly timer) for recording the floor temperature for wall mounting. Suitable for controlling electric floor, wall/ceiling heaters etc. Extremely simple operation thanks to separate setting of the day and night temperatures. Additional rotary switch for 5 programs, day/automatic/night/frost protection/off. Selectable switching behavior, pulse width modulation or 2-point control method. Adjustable cycle duration of 10 or 25 minutes (sum of on and off times of the pulse width modulation). Clock power reserve in the event of a power failure approx. 100 hours. Range restriction in the setting button as a heating cost brake. 2 control lamps, heating on and setback mode. Choose between 2 sensor types, floor temperature detection or room temperature detection.
| Property | Value |
| Type of power supply: | 230 V |
| Connection: | other |
| With receiver: | no |
| Measuring range: | 5 to 50 °C |
| External sensor: | yes |
| With thermal feedback: | yes |
| Control characteristics: | other |
| Heating: | yes |
| Number of heating outputs: | 1 |
| Number of cooling outputs: | 1 |
| Difference adjustable: | no |
| Selector switch for heating and hot water with heating: | no |
| Sensor design: | Resistance sensor |
| Temperature readable: | no |
| With Display: | no |
| Clock type: | Weekly clock |
| Clock design: | analog |
| Operation: | rotary |
| Max. voltage of the contacts: | 230 V |
| Max. Contact load: | 16 A |
| Protection class (IP): | IP30 |
| Explosion-proof: | no |
| RAL number: | 9010 |
| Width: | 160 mm |
| Depth: | 36 mm |
| Height: | 80 mm |
