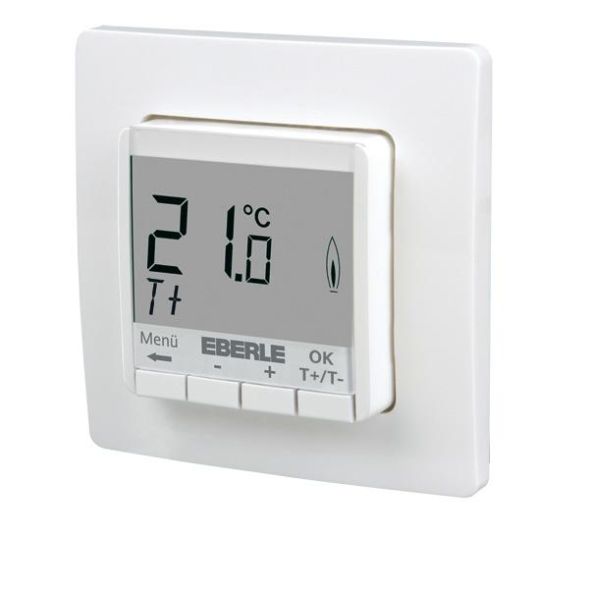

Flush-mounted thermostat is suitable for controlling central heating, hot water underfloor heating, warm air heating, etc. Very large display, the white backlight is off, briefly on after pressing a button. Single-line text display for self-explanatory operation. Easy switching between 2 temperatures (e.g. comfort and reduced temperature). ECO input for activating a freely adjustable temperature, e.g. for night-time reduction. Short-term timer (party) for hourly temperature changes. Energy consumption display (switch-on time * costs). Frost protection. Unauthorized access. PWM or 2-point control method. Adaptation to valves open when de-energized. Heating or cooling adjustable. Valve protection. Installation in 55 mm flush-mounted box
| Property | Value |
| Type of power supply: | 230 V |
| Connection: | three-/four-wire |
| With receiver: | no |
| Measuring range: | 5 to 30 °C |
| External sensor: | no |
| With thermal feedback: | yes |
| Control characteristics: | other |
| Heating: | yes |
| Number of heating outputs: | 1 |
| Number of cooling outputs: | 1 |
| Difference adjustable: | yes |
| Selector switch for heating and hot water with heating: | no |
| Sensor design: | Resistance sensor |
| Temperature readable: | yes |
| With display: | yes |
| Clock type: | other |
| Clock design: | digital |
| Optimization: | yes |
| Operation: | button |
| Max. voltage of the contacts: | 230 V |
| Max. Contact load: | 10 A |
| Protection class (IP): | IP30 |
| Explosion-proof: | no |
| RAL number: | 9010 |
| Width: | 80.5 mm |
| Depth: | 17.5 mm |
| Height: | 80.5 mm |
Features
Operation
Button
Sensor/sensor design
Resistance sensor
Temperature can be read
Yes
Manufacturer
HAN
527815455100
GTIN
4017254156731
Width
80.5 mm
Explosion-proof
No
Height
80.5 mm
With display
Yes
RAL number
9010
IP protection)
IP30
Depth
17.5 mm
