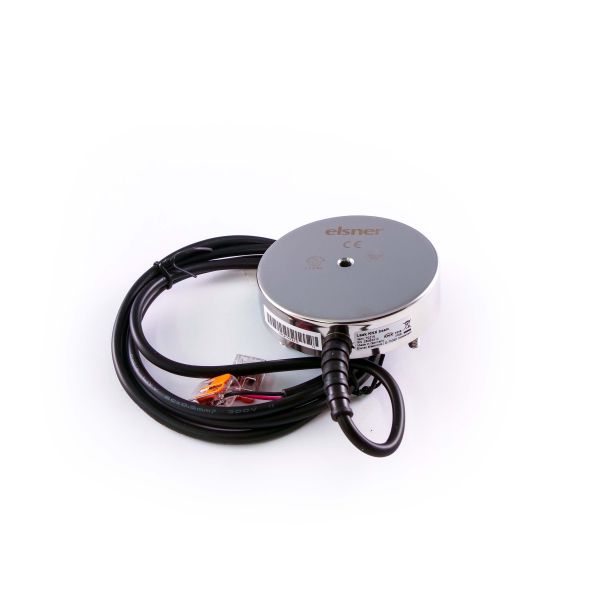

![CDATA[Leakage sensor Leak KNX 2.0 for the KNX building bus system: evaluation unit and probe. Detects water on the electrodes of the probe, emits an alarm tone and sends an alarm signal to the KNX bus. An alarm is triggered even without a probe or if the cable is defective. Features: Acoustic alarm signal, alarm message via KNX bus, detection of probe and cable status. 4 AND and 4 OR logic gates for complex control. Configuration with KNX software ETS 5. Technical data: Evaluation unit: plastic housing, gray, surface mounting, IP20, dimensions: 105 x 105 x 65 mm, operating temperature: -20 to +70°C, auxiliary voltage: 20 to 32 V DC, current on the bus: 10 mA, communication objects: 55. Probe input: 1 electrode probe (BNC connection). Probe: stainless steel A2, IP68, diameter: 77 mm, cable length: approx. 140 cm, weight: approx. 200 g.]]>
Features
Surface
-
Material
plastic
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
4051996703167
Siemens LOGO!
No
Rain
N/A
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
Brightness sensor
No
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
CO2 sensor
No
Gira One
No
JUNG HOME
No
KNX-RF
No
KNX-TP
Yes
Matter
No
Modbus
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Air pressure sensor
N/A
Division units
-
Fits in 55 switch program
N/A
Humidity sensor
N/A
Manufacturer type
Leak KNX 2.0
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
Integrated controller
No
KNX USB interface
Yes
Modbus RTU
No
VOC sensor
N/A
DALI
No
Class
sensor
Free@home
No
installation location
Wall
Suitable for installation in switch program
N/A
Temperature sensor
N/A
Wind
N/A
HAN
70316
Manufacturer
Color
silver
GTIN
4051996703167
Mounting type
surface-mounted
With display
No
Accesories
No
