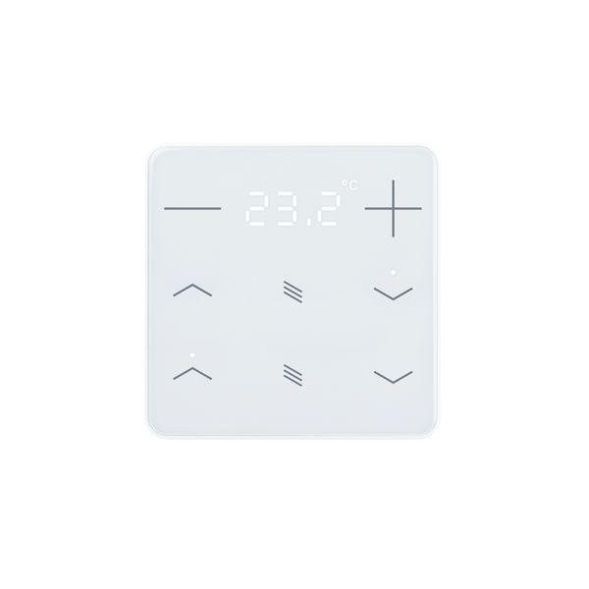

The KNX eTR 202 Sunblind button has touch-sensitive buttons with which functions in the KNX building bus system can be called up. The glass surface is printed with areas for temperature and sun protection settings. White LEDs are integrated in these areas and their behavior can be set. A temperature sensor is integrated in the KNX eTR 202 Sunblind. The device can receive an external temperature measurement via the bus and process it with its own data to create an overall temperature (mixed value). The KNX eTR 202 Sunblind has a PI controller for heating and cooling. The target temperature is changed using the '+' and '-' touch buttons. Communication objects can be linked using AND and OR logic gates. Models: No. 71100 KNX eTR 202 Sunblind signal white RAL 9003 No. 71102 KNX eTR 202 Sunblind deep black RAL 9005
