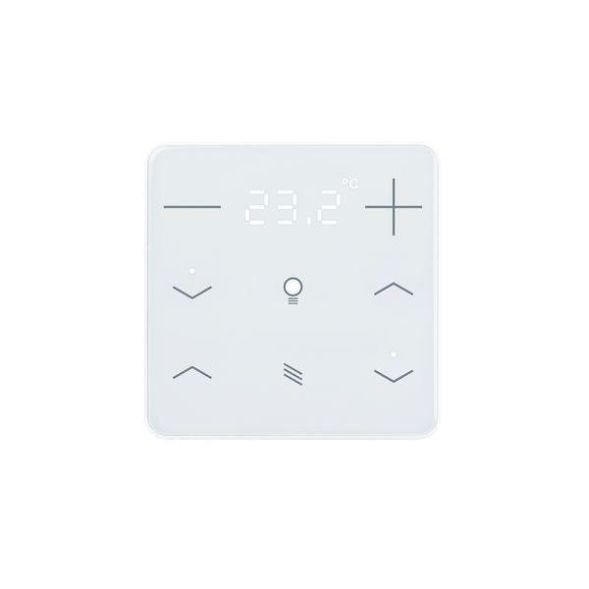

Elsner KNX eTR 208 Light/Sunblind white RAL9003 button

The KNX eTR 208 Light/Sunblind button has touch-sensitive buttons with which functions in the KNX building bus system can be called up. The glass surface is printed with areas for temperature, light and sun protection settings. LEDs are integrated in these areas, the behavior of which can be set. A temperature sensor is integrated in the KNX eTR 208 Light/Sunblind. The device can receive an external temperature measurement via the bus and process it with its own data to create an overall temperature (mixed value). The KNX eTR 208 Light/Sunblind has a PI controller for heating and cooling. The target temperature is changed using the '+' and '-' touch buttons. Communication objects can be linked using AND and OR logic gates.
