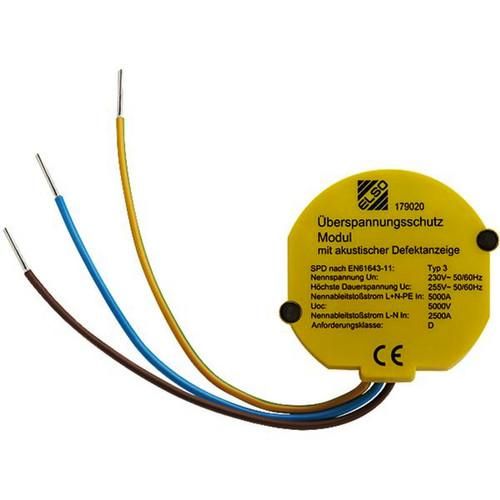

Surge protection module Protection of a socket/protection of downstream sockets and devices up to 4m Dimensions: approx. o52x14mm The surge protection module for protective contact sockets is used for fine device protection on the mains side. Protection class D according to DIN0675T.6 Use: In the underfloor system, underfloor and surface-mounted boxes (e.g. behind sockets with a deep box (60mm), device boxes, cable ducts or directly in or on consumers. If the protective circuit fails, an acoustic signal sounds, which indicates the failure of the protective circuit. The defective module must be replaced immediately. The socket remains operational. Nominal voltage Un: 230V AC 50/60Hz Rated voltage Ur: 250V AC 50/60Hz Nominal current: 16A Max. discharge current Ismax: 6500A Nominal discharge current Isn: 2500A Uoc: 5000V Requirement class: D
| Property | Value |
| Protection level: | 6 kV |
| Nominal voltage AC: | 250 V |
| Maximum continuous voltage AC: | 255 V |
| Mounting type: | Module |
| With remote signaling contact: | no |
| Nominal discharge current (8/20) (LN) : | 2.5 kA |
| Total discharge current (8/20) (L+N-PE) : | 2.5 kA |
| Nominal load current: | 16 A |
| Protection level LN: | 0.95 kV |
| Protection level L-PE/N-PE: | 1.05 kV |
| Number of poles: | 2 |
| Signaling on the device: | acoustic |
| Test class type 3: | yes |
| With interference filter: | no |
| Protection class (IP): | other |
