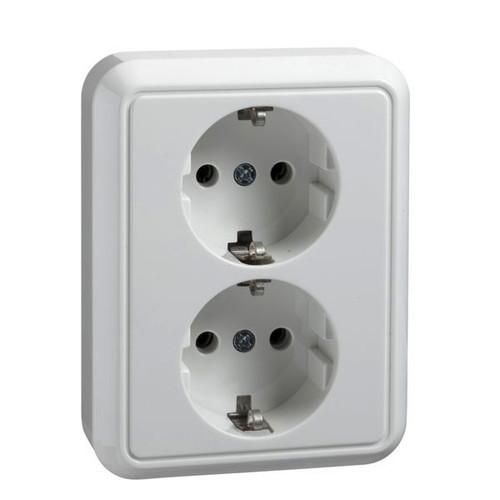

2-way socket, color: pure white, semi-recessed, cover 80x104x27mm, made of thermoplastic for 55 installation boxes, protective contact sockets 16 A 250V AC for flush mounting, protection class IP 20, screw terminals clamping range for copper conductors 1.5mm and 2.5 mm, for the secure connection of aluminum conductors 2.5 mm without pre-treatment
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar) : | 9010 |
| Number of units: | 2 |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Print/marking: | without print |
| Connection type: | screw terminal |
| With fine fuse: | no |
| Fastening type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| For 'difficult conditions' (according to VDE): | no |
| Device width: | 109 mm |
| Device height: | 104 mm |
| Device depth: | 55 mm |
| Insulated installation: | no |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK02 |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| Number of active contacts (round): | 1 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Manufacturer
HAN
235404
GTIN
4013984143454
Lockable
No
Connection type
Screw terminal
Antibacterial treatment
No
Number of Units
2
Number of phases
1
Printing/marking
Without imprint
Version
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50Hz
Device width
109 mm
Device height
104 mm
Device depth
55 mm
Halogen free
Yes
Insulated installation
No
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Untreated
Impact resistance
IK02
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
