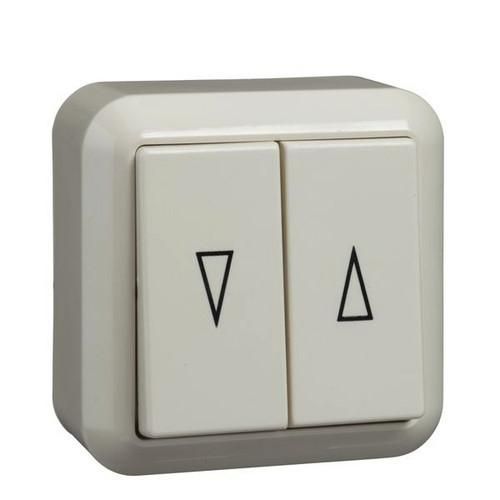

Blind button, 10 A 250 V AC, color: pearl white, with mechanical and electrical locking to prevent simultaneous operation, can also be used as a blind switch after removing the return spring, for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Plug-in terminals: clamping range for information cables with a cable diameter of 0.5 mm and over, for copper conductors 1.5 mm and 2.5 mm.
| Property | Value |
| Color: | cream white (electric white) |
| Design: | other |
| Number of buttons: | 2 |
| Suitable for protection class (IP): | IP20 |
| Operating mode: | other |
| Rated voltage: | 250 V |
| Halogen-free: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | yes |
| Composition: | Base element with complete housing |
| Electrical and mechanical locking: | yes |
| Mechanically operated: | yes |
| Electronically operated: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| Fastening type: | Fastening with screw |
| RAL number (similar): | 1013 |
| Number of modules (with modular construction): | 2 |
| Rated current: | 10 A |
| Transparent: | no |
Features
Insert Module Type
Blind covers
Number of buttons
2
Manufacturer
HAN
382800
GTIN
4013984112184
Version
Surface finish
Glittering
Operating mode
Other
Mounting type
Fastening with screw
Rated current
10A
Halogen free
Yes
Mounting type
Surface-mounted
Nominal voltage
250V
Surface
Untreated
Text field/label area
Yes
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with complete housing
