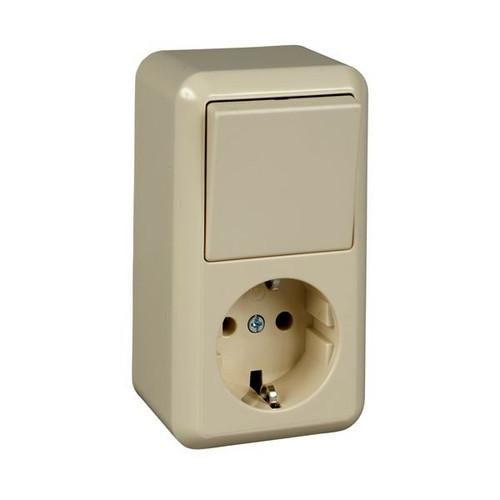

Combination universal switch and socket, color: pearl white, (on/off switch), switch: 10 A 250 V AC, socket 16 A 250 V AC, for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Plug-in terminals: clamping range for copper conductors 1.5 mm and 2.5 mm.
| Property | Value |
| Color: | cream white (electric white) |
| Socket design: | SCHUKO |
| Number of sockets: | 1 |
| Switch design: | Changeover switch |
| Suitable for protection class (IP): | IP20 |
| Socket rated current: | 16 A |
| Rated current: | 10 A |
| Nominal voltage: | 250 V |
| Mounting type: | Surface-mounted |
| Halogen-free: | yes |
| Operating type: | Rocker/button |
| Mounting direction: | vertical |
| Mounting type: | Mounting with screw |
| With lighting: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 1013 |
| Residual current protection: | no |
| Device width: | 63 mm |
| Device height: | 113 mm |
| Device depth: | 43 mm |
| With fine fuse: | no |
| Transparent: | no |
| Surge protection: | no |
| Number of active contacts (approx.): | 2 |
Features
With lighting
No
Manufacturer
HAN
388600
GTIN
4013984112481
Surface finish
Glittering
Design of the switch
Changeover switch
Operating mode
Rocker/Button
Mounting type
Fastening with screw
Rated current
10A
Residual current protection
No
Device width
63 mm
Device height
113 mm
Device depth
43 mm
Halogen free
Yes
With micro fuse
No
Mounting type
Surface-mounted
Mounting direction
Vertical
Nominal voltage
250V
Surface
Untreated
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
