Description

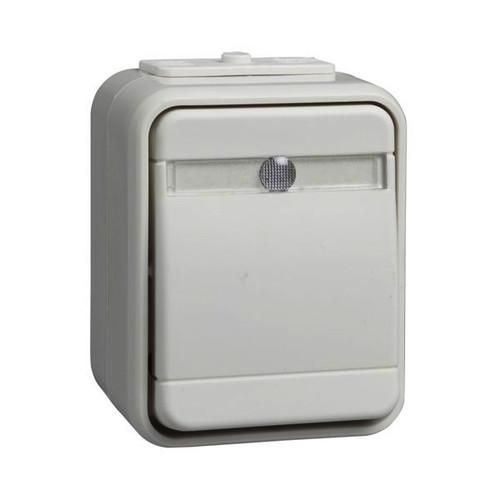

Universal switch illuminated, 10 A 250 V AC, color: pearl white, (on/off switch) for surface mounting, protection class IP 44, with two cable entries, plug-in terminals: clamping range for information cables from cable diameter 0.5 mm, for copper conductors 1.5 mm and 2.5 mm.
| Property | Value |
| Color: | cream white (electric white) |
| Suitable for protection class (IP): | IP44 |
| Circuit type: | Changeover switch |
| Operating method: | Rocker/button |
| Number of rocker switches: | 1 |
| Mounting type: | Surface-mounted |
| Push button: | no |
| Composition: | Base element with complete housing |
| Mounting type: | Screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 1013 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 10 AX |
| Feedback contact: | no |
| Washing machine switch: | yes |
| Connection type: | Plug-in terminal |
| Lighting: | yes |
| Lighting type: | neon lamp |
| Lighting function: | illuminated when switched on |
| Rated current: | 10 A |
| Device depth: | 53 mm |
| Device width: | 65 mm |
| Device height: | 81 mm |
| With mounting plate: | no |
| Text field/label area: | no |
Features
Feedback contact
No
Number of actuating rockers
1
Circuit type
Changeover switch
Lighting
Yes
Switching current for fluorescent lamps
10 AX
Push button
No
Washing machine switch
Yes
Lighting function
Illuminated when switched on
Manufacturer
HAN
441610
GTIN
4013984108293
Connection type
Plug-in terminal
Surface finish
Frosted
Operating mode
Rocker/Button
Mounting type
Screw fastening
Rated current
10A
Device width
65 mm
Device height
81 mm
Device depth
53 mm
Halogen free
Yes
With mounting plate
No
Mounting type
Surface-mounted
Nominal voltage
250V
Surface
Untreated
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with complete housing
