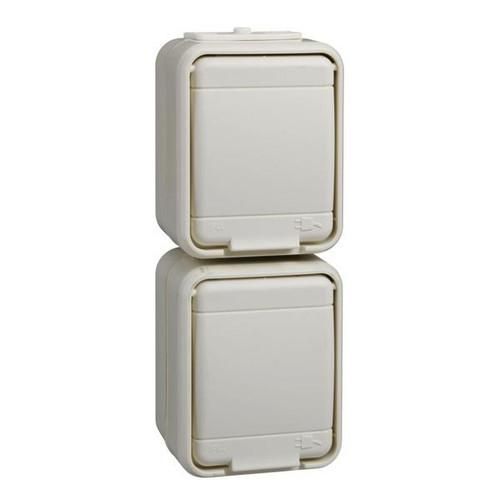

2-way vertical socket, 16 A 250 V AC, color: pearl white, pre-wired, for surface mounting, protection class IP 44, with two cable entries, plug-in terminals: clamping range for copper conductors 1.5 mm and 2.5 mm, connection terminals according to 0620
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 1013 |
| Number of units: | 2 |
| Color: | cream white (electric white) |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Print/marking: | without print |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Fastening type: | Fastening with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| For 'difficult conditions' (according to VDE): | no |
| Device width: | 65 mm |
| Device height: | 165 mm |
| Device depth: | 53 mm |
| Insulated installation: | no |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 1 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Manufacturer
HAN
445410
GTIN
4013984125948
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
2
Number of phases
1
Printing/marking
Without imprint
Version
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Fastening with screw
Residual current protection
No
Frequency
50Hz
Device width
65 mm
Device height
165 mm
Device depth
53 mm
Halogen free
Yes
Insulated installation
No
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Surface-mounted
Nominal voltage
250V
Rated current
16A
Surface
Untreated
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
