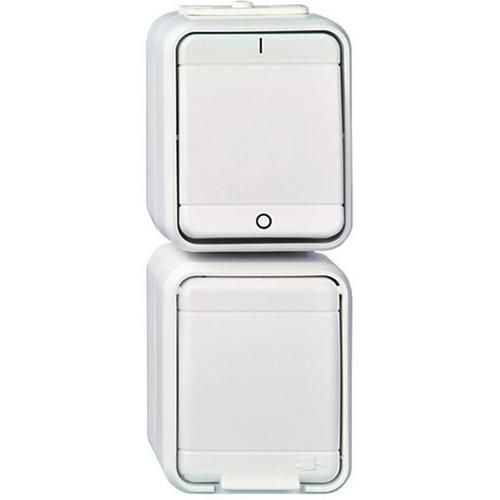

Off switch 2-pole and socket vertical, color: light/basalt gray, combinations switch 16 A 250V AC/socket with earthing contact 16 A 250V AC, for surface mounting, protection class IP 44, with two cable entries, screw terminals: clamping range for copper conductors 1.5 mm and 2.5 mm, for the secure connection of aluminum conductors 2.5 mm without pre-treatment.
| Property | Value |
| Color: | gray |
| Design of the socket: | SCHUKO |
| Number of sockets: | 1 |
| Design of the Switch: | other |
| Suitable for protection class (IP): | IP44 |
| Nominal current socket: | 16 A |
| Rated current: | 16 A |
| Nominal voltage: | 250 V |
| Mounting type: | Surface-mounted |
| Halogen-free: | yes |
| Operating type: | Rocker/button |
| Installation direction: | vertical |
| Mounting type: | Mounting with screw |
| With lighting: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 7035 |
| Residual current protection: | no |
| Device width: | 65 mm |
| Device height: | 165 mm |
| Device depth: | 53 mm |
| With fine fuse: | no |
| Transparent: | no |
| Overvoltage protection: | no |
Features
With lighting
No
Manufacturer
HAN
458229
GTIN
4013984126075
Surface finish
Frosted
Design of the switch
Other
Operating mode
Rocker/Button
Mounting type
Fastening with screw
Rated current
16A
Color
Residual current protection
No
Device width
65 mm
Device height
165 mm
Device depth
53 mm
Halogen free
Yes
With micro fuse
No
Mounting type
Surface-mounted
Mounting direction
Vertical
Nominal voltage
250V
Surface
Untreated
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
