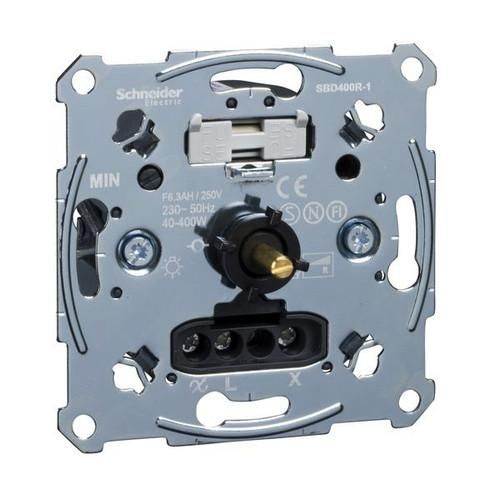

With push button switch For incandescent lamps 230 V, 50 Hz, for halogen lamps 230 V Fuse: Safety fuse 6.3 A Type: SBD400R1
| Property | Value |
| Dimming leading edge: | yes |
| Dimming trailing edge: | no |
| Mounting type: | Flush-mounted |
| Color: | gray |
| Suitable for protection class (IP): | IP20 |
| Operating mode: | Rotary/push button |
| Halogen-free: | yes |
| Composition: | Basic element |
| Load type: | ohmic load |
| Series dimmer: | no |
| Extension input: | no |
| Light value memory: | yes |
| Can be used with button: | no |
| Can be used with Motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | Mounting with screw |
| Material: | other |
| Material quality: | other |
| Surface: | untreated |
| Frequency: | 50 Hz |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 29 mm |
| Rated power: | 400 VA |
| Rated voltage: | 230 V |
| Transparent: | no |
| App control via Bluetooth: | no |
| Connection type: | screw terminal |
| Wire cross-section: | 1.5 mm |
| Min. depth of device box: | 46 mm |
Features
Core cross-section
1.5 mm
Manufacturer
HAN
ELG174101
GTIN
4013984193220
Connection type
Screw terminal
Operating mode
Rotary/push button
Mounting type
Fastening with screw
Dimming trailing edge
No
Dimming phase control
Yes
Color
Frequency
50Hz
Device width
71 mm
Device height
71 mm
Device depth
29 mm
Halogen free
Yes
Min. depth of the device box
46 mm
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Untreated
Transparent
No
Material
Other
Material quality
Other
Compilation
Basic element
