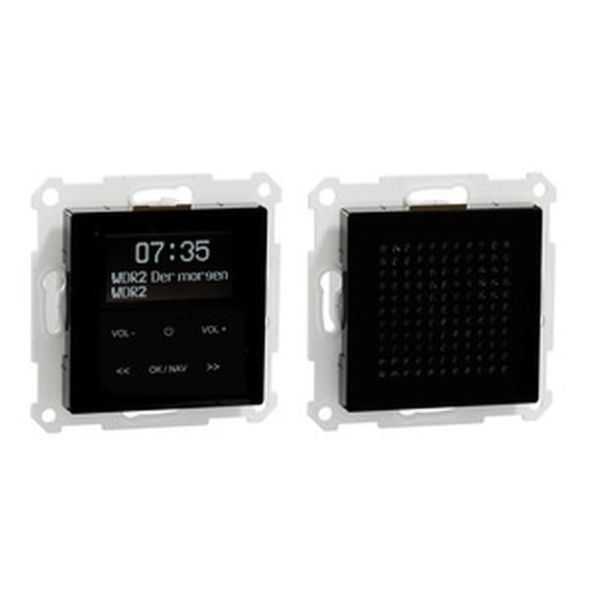

The set consists of a flush-mounted radio with FM RDS and DAB+ tuner and Bluetooth function as well as a high-quality loudspeaker. It can be combined with a 2-way frame from the JOY family. The set enables you to play playlists or stream music via Bluetooth and has a sensor touch surface. The radio has a station memory for 20 DAB+ and 20 FM stations. DAB+ is more efficient in using the spectrum than analogue FM radio and can therefore offer more radio services for the same given bandwidth. The product has a clock function with 2 alarm functions and a sleep timer. The screw connection terminals enable a secure connection. The product can be installed in standard switch boxes. The dimensions are 142mm x 70.8mm x 41.1mm. The installation depth is 29mm. The protection class is IP20 and IK03 as impact protection. The radio and the loudspeaker are free of SVHC (substances of very high concern) and meet the RohS and Reach requirements.
Feature | Value |
Nominal power handling: | 3.0 W |
Height: | 70.8 mm |
Width: | 142.0 mm |
Depth: | 41.5 mm |
Suitable for protection class (IP): | IP20 |
Music power handling: | 4.0 W |
Nominal voltage: | 230.0 V |
Number of program memory locations: | 20.0 |
Mounting type: | Flush-mounted |
With voice announcement function: | no |
RAL number (similar): | 9005.0 |
Impedance: | 4.0 Ohm |
Frequency: | 50.0 to 60.0 Hz |
Composition: | other |
Color: | black |
Number of analog inputs: | 0.0 |
RDS: | yes |
With tuner: | yes |
With frequency display: | yes |
Number of analog outputs: | 2.0 |
Min. Depth of the device box: | 20.2 mm |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | no |
