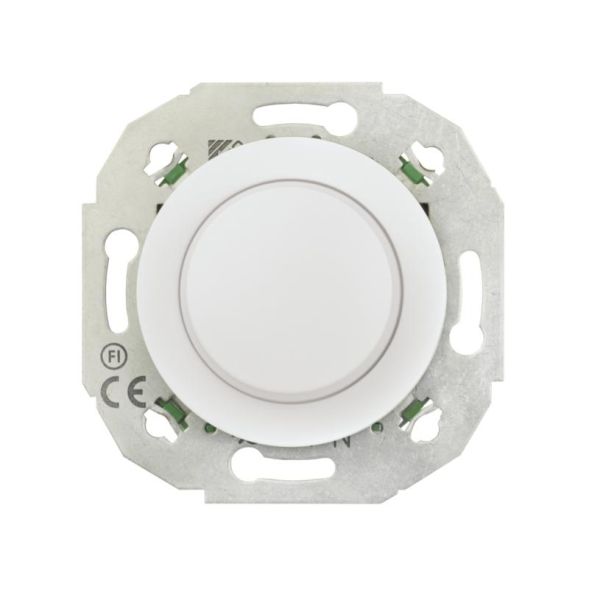

Universal dimmer insert 20- 420 W/VA, With push-off/changeover switch, For incandescent and halogen lamps 230 V, 50 Hz, For low-voltage halogen lamps with conventional transformer, For low-voltage halogen lamps with toroidal core transformer 40- 350 VA, For low-voltage halogen lamps with electronic transformer, With reversible short circuit, overload and thermal protection, Automatic operating mode setting (leading edge/trailing edge), With memory function, Note: Inductive (L) and capacitive (C) mixed load not permitted, With central plate white RENOVA
| Property | Value |
| Dimming leading edge: | yes |
| Dimming trailing edge: | yes |
| Mounting type: | Flush-mounted |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Rotary/push button |
| Halogen-free: | yes |
| Composition: | Base element with central cover plate |
| Load type: | universal |
| Series dimmer: | yes |
| Extension input: | yes |
| Light value memory: | no |
| Can be used with button: | no |
| Can be used with motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| Frequency: | 50 Hz |
| Device width: | 83 mm |
| Device height: | 83 mm |
| Device depth: | 51 mm |
| Rated power: | 420 VA |
| Rated voltage: | 230 V |
| Transparent: | no |
| App control via Bluetooth: | no |
| Connection type: | screw terminal |
| Wire cross-section: | 2.5 mm |
| Min. depth of device box: | 46 mm |
Features
Core cross-section
2.5 mm
Manufacturer
HAN
WDE011605
GTIN
3606480661747
Connection type
Screw terminal
Surface finish
Frosted
Operating mode
Rotary/push button
Mounting type
Fastening with screw
Dimming trailing edge
Yes
Dimming phase control
Yes
Color
Frequency
50Hz
Device width
83 mm
Device height
83 mm
Device depth
51 mm
Halogen free
Yes
Min. depth of the device box
46 mm
Mounting type
Flush-mounted
Extension input
Yes
Nominal voltage
230V
Surface
Untreated
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
