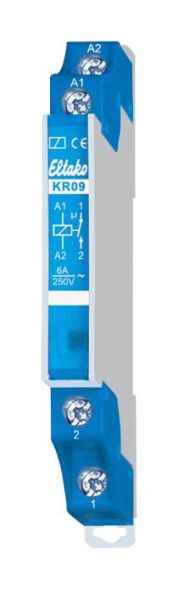

1 normally open contact, potential-free 6A/250V AC, 230V LED lamps up to 50W, incandescent lamps 500W. No standby loss. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1/2 division unit = 9mm wide, 55mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Control voltages 12V UC. Control display with LED. Control power requirement only 0.2W. Safe separation according to 0106, part 101, can therefore also be used as a coupling relay.
| Property | Value |
| Mounting type: | DIN rail |
| Rated current: | 6 A |
| Control voltage type 1: | AC/DC |
| Control voltage 1: | 12 V |
| Max. fluorescent lamp load: | 600 VA |
| Max. Switching current (cos phi = 0.6): | 2 A |
| Installation depth: | 55 mm |
| Function: | partially electronic |
| Width in modular units: | 0.5 |
| Max. incandescent lamp load: | 500 W |
| Max. fluorescent lamp load (parallel compensated): | 300 VA |
| Max. Fluorescent lamp load (duo circuit): | 600 VA |
| Frequency of control voltage 1: | 50 Hz |
| Number of contacts as normally open: | 1 |
Features
Max. fluorescent lamp load
600 VA
Manufacturer
HAN
22100705
GTIN
4010312203415
Number of contacts as normally open
1
Rated current
6A
Width in pitch units
0.5
Installation depth
55 mm
Function
Partially electronic
Mounting type
DIN rail
