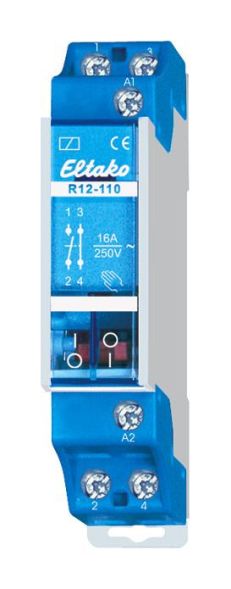

2-pole 16A/250V AC. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switch position indicator. 1 division unit = 18mm wide, 55mm deep. Duty cycle 100%. Control power requirement 1.9W. Contacts 1 normally open and 1 normally closed. Contact spacing 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V. The connection-compatible electronic switching relays ER12DX-UC, ER12-200-UC and ER12-110-UC can also be used. The universal control voltage UC covers the voltage range 12-230V AC 50-60 Hz and 12-230V DC.
| Property | Value |
| Mounting type: | DIN rail |
| Rated current: | 16 A |
| Control voltage type 1: | AC |
| Control voltage 1: | 24 V |
| Max. fluorescent lamp load: | 2300 VA |
| Max. Switching current (cos phi = 0.6): | 10 A |
| Installation depth: | 55 mm |
| Function: | other |
| Width in modular spaces: | 1 |
| Max. incandescent lamp load: | 2300 W |
| Max. fluorescent lamp load (parallel compensated): | 500 VA |
| Max. Fluorescent lamp load (duo circuit): | 2300 VA |
| Frequency of control voltage 1: | 50 Hz |
| Type of supply voltage: | AC |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 1 |
Features
Type of voltage of the supply voltage
AC
Max. fluorescent lamp load
2300 VA
Manufacturer
HAN
22110020
GTIN
4010312200476
Number of contacts as normally open
1
Number of contacts as opener
1
Rated current
16A
Width in pitch units
1
Installation depth
55 mm
Function
Other
Mounting type
DIN rail
