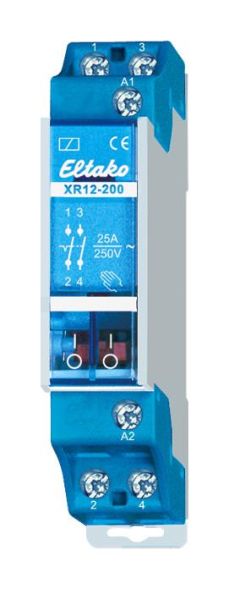

2-pole 25A/250V AC. Modular devices for mounting on DIN-EN 60715 TH35 rail with manual operation and switch position indicator. 1 division unit = 18mm wide, 55mm deep. Duty cycle 100%. Control power requirement 1.9W. Contacts 2 make contacts. Contact spacing 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V.
| Property | Value |
| Type of operating voltage: | AC |
| Protection class (IP): | IP20 |
| Max. incandescent lamp load: | 2300 W |
| Rated operating current: | 25 A |
| Rated operating voltage: | 250 V |
| Max. fluorescent lamp load (parallel compensated): | 1000 VA |
| Max. fluorescent lamp load (duo circuit): | 3600 VA |
| Max. Fluorescent lamp load: | 3600 VA |
| Additional equipment possible: | yes |
| Type of actuating voltage: | AC |
| Installation depth: | 55 mm |
| Number of contacts as normally open: | 2 |
Features
Rated operating current
25 A
Max. fluorescent lamp load
3600 VA
Manufacturer
HAN
22200930
GTIN
4010312201305
Number of contacts as normally open
2
Rated operating voltage
250V
Installation depth
55 mm
IP protection)
IP20
Additional equipment possible
Yes
