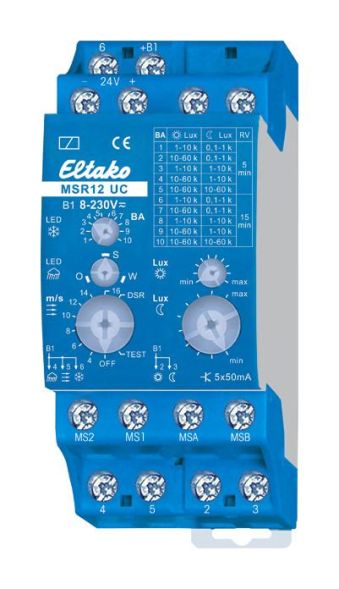

Multifunctional sensor relay UC for brightness, twilight, wind, rain and frost. Standby loss without multisensor MS only 0.5 watts. The multifunctional sensor relay MSR12-UC evaluates the signals from the multisensor MS once every second and issues corresponding control commands to the downstream actuators depending on the setting of the rotary switch on the front. The OptoMOS semiconductor outputs switch the voltage applied to the universal voltage input terminal +B1. Only 1 multisensor MS can be connected to a multifunctional sensor relay MSR12-UC. However, several MSR12-UC can be connected to a multisensor MS in order to be able to evaluate up to three directions with the light sensors of the MS, for example. The external terminating resistor only has to be present with one MSR12-UC. For additional MSR12-UC, however, it must be removed. The power supply simultaneously supplies the MS multisensor connected to terminals MS1, MS2, MSA and MSB, including heating of the rain sensor surface. After installation, wait for automatic synchronization (approx. 1 minute). During this time, 3 LEDs light up in quiet sequence.
| Property | Value |
| Width in division units: | 2 |
| Protection class (IP): | IP20 |
| Time range: | 5 to 15 min |
| Control voltage 1: | 24 V |
| Control voltage type 1: | DC |
| Number of channels: | 5 |
| Width: | 36 mm |
| Height: | 62 mm |
| Depth: | 58 mm |
| Brightness sensor: | 1000 to 60000 lx |
| Follow-up function, number of channels: | 3 |
| Rated current: | 0.05 A |
| Function: | Weather sensor |
| Wind sensor: | 16 to 4 m/s |
| Twilight sensor: | 1000 to 60000 lx |
| Rated voltage: | 24 V |
| Mounting type: | DIN rail |
| Astro program: | no |
| Weekly program: | no |
| Staircase light and advance warning: | no |
| Rain sensor: | yes |
| Presence simulation: | yes |
| Group switch: | no |
| Panic function: | no |
