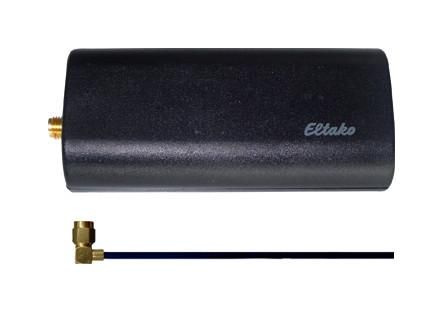

Eltako 30014016 radio module FEM receiving antenna module RS485

Brand:Eltako
To compare
To favorites
SKU:187766
Eltako 30014016 radio module FEM receiving antenna module RS485
Manufacturer
HAN
GTIN
Other bus systems
In stock
€76.97
11
Shipping information
International shipping DHL
Рассчитываем стоимость доставки...
DPD
Рассчитываем стоимость доставки...
UPS
Рассчитываем стоимость доставки...
Description
Features
Reviews

Radio reception antenna module for the RS485 sub-bus. Standby loss only 0.5 watts. SMA socket for the small antenna included. The reception range can be increased by connecting a larger radio antenna FA250*, FA200* or FAG55E-* in an optimized position. Housing dimensions LxWxH: 78x40x22mm. Up to three radio reception modules in their own mini housing can be installed anywhere in the building in addition to a FAM14 if required and connected to the main bus with a 4-wire shielded sub-bus cable (e.g. telephone cable) via a gateway FGW14. To do this, connect the RSA/RSB terminals of the FEM to the RSA2/RSB2 terminals of the FGW14. Also connect the +12V/GND terminals of the FEM to the +12V/GND terminals of the FGW14. The wiring of several FEMs must be done with one cable in the form of a chain, as is required for RS485 bus systems. Star-shaped wiring with one cable per FEM is not permitted. The jumper must be plugged into a different position for each of the three radio receiver modules. To do this, carefully open the housing at the point provided on the narrow side with a screwdriver. Blade width 6.5mm, max. 1.5mm thick.

Property Value
KNX bus system: no
Radio bus system: yes
Powernet bus system: no
Mounting type: Surface-mounted
LON bus system: no
Other bus systems: without
Mounting type: other
Bus system KNX radio: no
Radio bidirectional: yes
Features
Manufacturer
HAN
GTIN
Other bus systems
Mounting type
Bus system radio bus
KNX bus system
KNX radio bus system
LON bus system
Powernet bus system
Radio bidirectional
Mounting type
