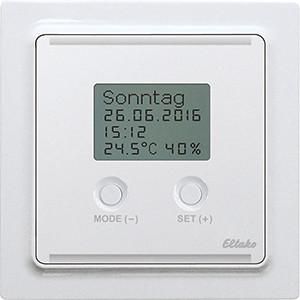

Bus clock thermo-hygrostat with display for connection to the RS485 bus gateway BGW14. For individual installation or installation in the E-Design55 switch system. 80x80mm, 14mm high. Installation depth 33mm. With adjustable day and night target temperatures and target humidity. Display illuminated. Preset and ready for use. Data is transmitted via the 4-wire bus and power is supplied with a 12V DC switching power supply. Stand-by loss only 0.1 watt.
| Property | Value |
| Color: | other |
| Mounting type: | Surface-mounted |
| Composition: | Base element with complete housing |
| Other bus systems: | other |
| Material quality: | Thermoplastic |
| Material: | Plastic |
| Protection class (IP): | other |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| KNX bus system: | no |
| Radio bus system: | no |
| Powernet bus system: | no |
| LON bus system: | no |
| With theft/dismantling protection: | no |
| With display: | yes |
| With LED display: | no |
| With on-site operation: | yes |
| Manual setpoint adjustment: | yes |
| Presence button: | no |
| Parallel operation possible: | yes |
| Transparent: | no |
| KNX radio bus system: | no |
| Bidirectional radio: | no |
| Power consumption in standby mode (solstandby): | 0.1 W |
| Min. depth of device socket: | 47 mm |
Features
With theft/dismantling protection
No
HAB
BUTH55ED/12VDC-pm polar white matt
Manufacturer
HAN
30055166
GTIN
4010312326688
Other bus systems
Other
Surface finish
Frosted
Bus system radio bus
No
KNX bus system
No
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
Color
Radio bidirectional
No
Min. depth of the device box
47 mm
With display
Yes
With LED display
No
Mounting type
Surface-mounted
Surface
Untreated
RAL number (similar)
9010
IP protection)
Other
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with complete housing
