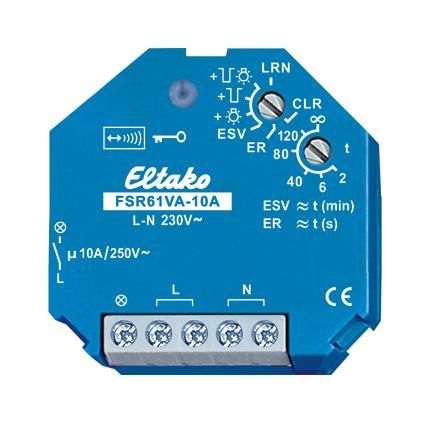

Wireless actuator impulse switching relay with current measurement. 1 normally open contact not potential-free 10A/250V AC, light bulbs 2000 watts, off-delay with switch-off warning and button permanent light can be switched on. With integrated current measurement up to 10A. Encrypted radio, bidirectional radio and repeater function can be switched on. Stand-by loss only 0.8 watts. For built-in installation. 45mm long, 45mm wide, 33mm deep. Supply and switching voltage 230V. If the supply voltage fails, the switching state is retained. When the supply voltage returns, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. With the integrated current measurement, the apparent power from approx. 10VA to 2300VA is measured with the contact closed. A radio telegram is sent to the Eltako building radio within 30 seconds of the load being switched on and after a change in power of at least 5%, as well as cyclically every 10 minutes. Evaluation on the computer with the building radio visualization and control software GFVS or with the energy consumption display FEA65D. GFVS-Energy supports up to 100 transmitter modules, GFVS 3.0 up to 250 transmitter modules. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Every change in status and incoming central control telegrams are confirmed with a radio telegram. This radio telegram can be taught in other actuators, the GFVS software and in universal displays. Scene control: Using one of the four control signals from a button with a double rocker that has been programmed as a scene button, several FSR61s can be switched on or off to form a scene. Using the upper rotary switch in the LRN position, up to 35 radio buttons can be assigned, including one or more central control buttons. The LED accompanies the learning process in accordance with the operating instructions and indicates radio control commands during operation by flashing briefly.
| Property | Value |
| Number of relays: | 1 |
| Mounting type: | Flush-mounted |
| Radio frequency: | 868 MHz |
| Number of commands: | 32 |
| Power supply: | 230 V AC |
| Color: | blue |
| Material: | Plastic |
| Halogen-free: | yes |
| Surface: | other |
| Mounting type: | other |
| Material quality: | Thermoplastic |
| Surface finish: | matt |
| Suitable for protection class (IP): | IP20 |
| Suitable for dimmer: | no |
| Suitable for pulse buttons: | yes |
| Suitable for roller shutter switches: | no |
| Suitable for switches: | yes |
| Rolling code system: | yes |
| In the housing: | yes |
| In the tube base housing: | no |
| As a module/circuit board: | no |
| Touch operation: | yes |
| Switching operation: | yes |
| With radio hand transmitter: | no |
| With radio coding device: | no |
| With radio button: | no |
| Suitable for blind switches: | no |
| Suitable for blind/roller shutter switches: | no |
| Transparent: | no |
