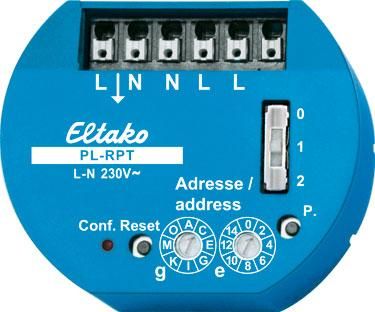

Eltako 31000030 PL-RPT Repeater

Powerline repeater. 53x43mm, 25mm deep, for installation in 58mm switch boxes. Standby loss only 0.5 watts. Greater ranges can be achieved with the repeater. For cable lengths >300m, the repeater is typically placed in a distribution between the sensor and actuator. The repeater repeats commands from sensors with the same address g, e. Feedback from the actuators is not repeated. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the elementary address e with 16 numerical values. Above this there is a slide switch as a configuration switch with positions 0, 1 and 2. Position 0: Central commands are repeated, regardless of the address e of the repeater. If address g, e = 0, only central commands are repeated. Position 1: If the repeater has address g, e = 0, all commands of group g are repeated. Position 2: Not assigned. Using the Sienna-Professional PC software, all entries and configurations can be accessed via the power supply. Addresses can be changed with or without power. To the left of the rotary switches there is a red LED that shows all activities. Next to it is the reset button and to the right of it is a service pin (P). The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm².
