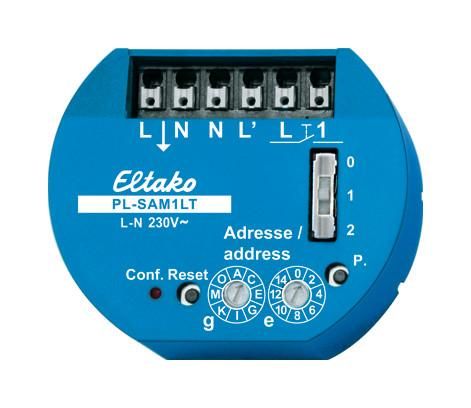

Powerline TLZ actuator with 1 channel. 53x43mm, 25mm deep, for installation in 58mm switch boxes. Release delay from 1 minute to 120 minutes. Switch-off warning adjustable. 1 normally open contact not potential-free 10A/250V AC, light bulbs 2000 watts. Sensor input 230V. Stand-by loss only 0.5 watts. For controlling and switching in the same place. There are two rotary switches on the front for address assignment: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the release delay time. Above this there is a slide switch as a configuration switch with positions 0, 1 and 2. Position 0: Button on the sensor input with follow-up switching. Position 1: Like position 0, but with switch-off warning. Position 2: A changeover switch is evaluated like a button. Using the Sienna-Professional PC software, all entries and configurations can also be accessed via the power grid. To the left of the rotary switches there is a red LED which indicates all activities. Next to it is the reset button and to the right of it a service pin. Functions as per the operating instructions. The connection terminals at the top are plug-in terminals for conductor cross-sections from 0.2mm² to 1.5mm².
| Property | Value |
| Max. number of switching outputs: | 1 |
| Mounting type: | Flush-mounted |
| Max. Switching capacity: | 2000 W |
| KNX bus system: | no |
| Max. Switching current: | 10 A |
| Bus system radio bus: | no |
| Bus system Powernet: | yes |
| With bus connection: | yes |
| Bus system LON: | no |
| Other bus systems: | without |
| With LED display: | yes |
| Suitable for C load: | yes |
| Different phases connectable: | no |
| Modular expansion option: | no |
| KNX radio bus system: | no |
| Removable bus module: | no |
| Output power: | 2000 W |
| Min. depth of device box: | 25 mm |
