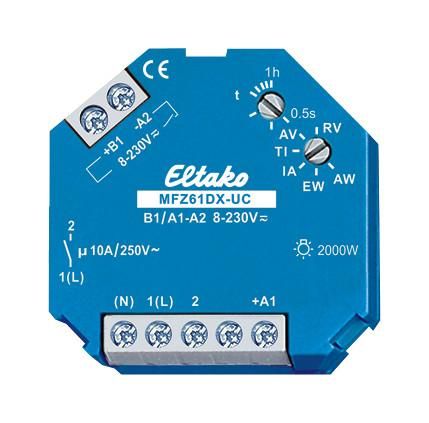

Eltako 61100604 Multifunction time relay MFZ61DX-UC 1S 10A for box installation

1 normally open contact potential-free 10A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W*. Stand-by loss only 0.02-0.4 watts. For flush mounting. 45mm long, 45mm wide, 18mm deep. With the Eltako Duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50Hz, thus drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to 1(L). This results in an additional stand-by loss of only 0.1 watts. The latest hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. By using a bistable relay, there is no coil power loss and no heating as a result, even when switched on. After installation, wait for the short automatic synchronization before connecting the switched consumer to the mains. Universal control voltage 8..230V UC. Supply voltage same as the control voltage. Times adjustable between 0.5 seconds and one hour. Functions: RV = release delay. AV = response delay. TI = clock generator starting with pulse. IA = pulse-controlled response delay. EW = pulse-on switch. AW = pulse-off switch. * The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced as follows: Up to 2 seconds to 15%, up to 2 minutes to 30%, up to 5 minutes to 60%.
