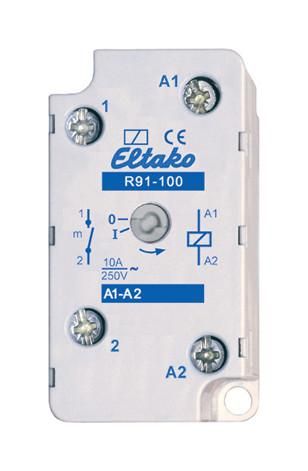

1 normally open contact 10A/250V AC. For flush and surface mounting with manual operation and switch position indicator. 50mm long, 26mm wide, 32mm deep. Duty cycle 100%. Control power requirement 2.5W. Contact spacing 2mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V. The electronic switching relay ER61-UC can also be used. The universal control voltage UC covers the voltage range 8-253V AC 50-60Hz and 10-230V DC.
| Property | Value |
| Mounting type: | Surface-mounted |
| Rated current: | 10 A |
| Control voltage type 1: | AC |
| Control voltage 1: | 230 V |
| Max. fluorescent lamp load: | 2300 VA |
| Max. Switching current (cos phi = 0.6): | 8 A |
| Installation depth: | 32 mm |
| Function: | semi-electronic |
| Max. incandescent lamp load: | 2300 W |
| Max. fluorescent lamp load (parallel compensated): | 500 VA |
| Max. Fluorescent lamp load (duo circuit): | 2300 VA |
| Frequency of control voltage 1: | 50 Hz |
| Type of supply voltage: | AC |
| Number of contacts as normally open: | 1 |
Features
Type of voltage of the supply voltage
AC
Max. fluorescent lamp load
2300 VA
Manufacturer
HAN
91100430
GTIN
4010312203125
Number of contacts as normally open
1
Rated current
10A
Installation depth
32 mm
Function
Partially electronic
Mounting type
Surface-mounted
