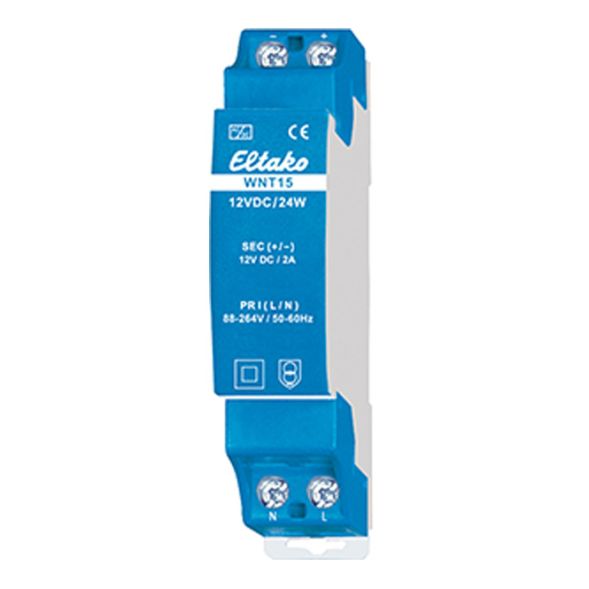

![CDATA[Wide-range switching power supply. Nominal power 24W. Standby loss only 0.1 watts. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. For a load greater than 50% of the nominal power and always for switching power supplies and dimmers placed next to each other, 1/2 division unit ventilation clearance is required on both sides using the DS12 spacers. Wide-range input voltage 88-264V AC (110V- 20% to 240V +10%). Efficiency 91%. Stabilized output voltage ±1%, low residual ripple. Short-circuit proof. Overload and overtemperature protection by switching off with automatic switching on after the error has been eliminated (autorecovery function). Technical data: Protection class (IP): IP20 1. Output voltage: 24 Short-circuit proof: yes Max. output current 1: 0.5 Nominal output voltage 1: 24 Installation width: 18]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
4010312401880
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
N/A
Zigbee
No
Nominal voltage outputs
N/A
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
Gira One
No
JUNG HOME
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Division units
1
Manufacturer type
WNT15-12VDC/24W
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
Modbus RTU
No
DALI
No
Class
power supplies
Free@home
No
installation location
distribution cabinet
power in W
12.00
HAN
20000072
Manufacturer
GTIN
4010312401880
