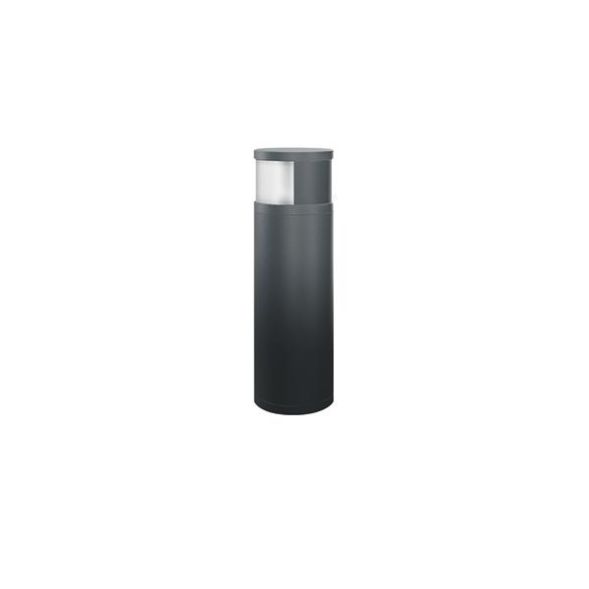

LED bollard light made of high-quality aluminum. Dirt-repellent thanks to powder coating with lotus effect. Light head: opal satin. Light emission: 180°. Electronic ballast integrated, installation without additional accessories. High-quality housing, die-cast aluminum, powder-coated anthracite, similar to RAL 7016. Installation type: mounting plate for screwing onto a foundation, optionally using ground anchor (accessory). Color temperature 3000 K.
Property | Value |
Cover material: | Opal plastic |
Impact resistance: | IK10 |
With light source: | yes |
Protection class: | I |
Light source: | LED not replaceable |
Nominal voltage: | 110 to 240 V |
Suitable for number of light sources: | 1 |
Diameter: | 170 mm |
Socket: | without |
Cover material Housing: | Aluminium |
Protection class (IP): | IP65 |
Type of luminaire: | Bollard light |
Operating device: | LED operating device, current-controlled |
Rated luminous flux according to IEC 62722-2-1: | 620 lm |
Color temperature: | 3000 to 3100 K |
Color rendering index CRI: | 80-89 |
Light color: | white |
With operating device: | yes |
With motion detector: | no |
With light sensor: | no |
Voltage type: | AC |
With base plate: | yes |
Surface: | powder-coated |
Light distributor: | diffuser lens/optics/panel |
Highest energy efficiency class of the replaceable lamp: | E |
Rated service life L70/B50 at 25 °C: | 110,000 h |
Max. System power: | 16.0 W |
Power factor: | 0.917000 |
Height/depth: | 540 mm |
Type of wiring: | suitable for through wiring |
Number of poles: | 3 |
Conductor cross-section: | 2.50 mm² |
Connection type: | Plug-in terminal |
Features
With base plate
Yes
HAB
Alva180° 540 170 16W 3000K ant Mi On/Off
Manufacturer
HAN
EL10820700
GTIN
4015120820700
Connection type
Plug-in terminal
Type of lamp
Bollard light
Type of wiring
Suitable for through wiring
Rated lifetime L70/B50 at 25 °C
110000 hours
Rated luminous flux according to IEC 62722-2-1
620lm
Operating device
LED control gear current controlled
Diameter
170 mm
Color temperature
3000 to 3100 K
Color rendering index CRI
80-89
Version
Without
Suitable for number of lamps
1
Height/Depth
540 mm
Power factor
0.917000
Conductor cross-section
2.50 mm²
Lamps
LED not replaceable
Light color
White
Light distributor
Diffuser lens/optics/panel
Max. system performance
16.0W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
110 to 240 V
Surface
Powder coated
Number of poles
3
Impact resistance
IK10
IP protection)
IP65
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Aluminum
