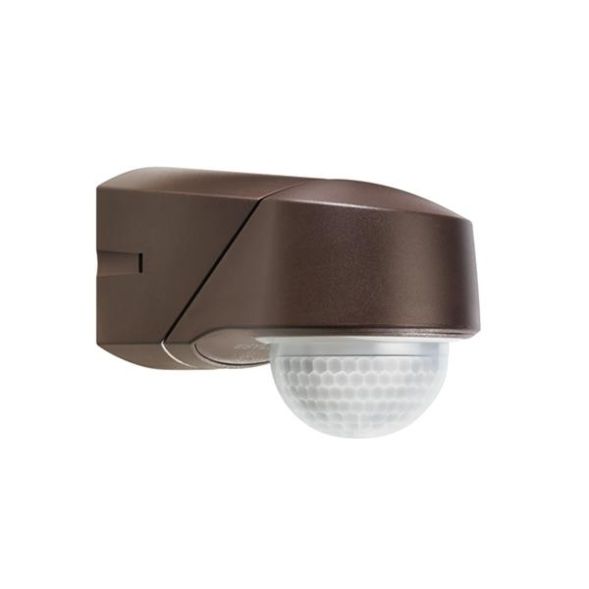

Motion detector with 130/230/280° detection area and large range, 360° creep-under protection for complete detection, can be switched off by remote control, can be programmed by remote control, e.g. permanent light ON/OFF and automatic reading function of the current light value, fixed factory program ensures immediate operational readiness, avoids incorrect operation thanks to integrated selector switch for test function/remote control/potentiometer setting, one-hand plug-in base assembly, double membrane cable entry, concealed connection base with large wiring space, range adjustment of the sensor with additional focus LED as adjustment aid, retractable adjustment elements prevent accidental adjustment of the parameters, wall or ceiling mounting is possible without accessories thanks to the swivel joint, individual areas can be hidden using the enclosed cover cap (can be cut to size individually), special base for inside and outside corner mounting
| Property | Value |
| Depth: | 135 mm |
| Width: | 78 mm |
| Height: | 105 mm |
| Version: | motion detector |
| Color: | brown |
| Nominal voltage: | 230 V |
| RAL number (similar): | 8017 |
| Material: | plastic |
| Mounting type: | surface-mounted |
| Response brightness: | 2 to 2500 lx |
| Protection class (IP): | IP54 |
| Max. switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 20.0 m |
| Scan angle: | 130 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | no |
| Max. frontal range: | 8.0 m |
| Max. Inrush current: | 100 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 2.5 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 20 m |
| Number of switching zones: | 1 |
| Switch-off delay: | 5 s |
| Detection angle horizontal: | 65 to 130 ° |
| Frequency: | 50 Hz |
| Halogen-free: | no |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
