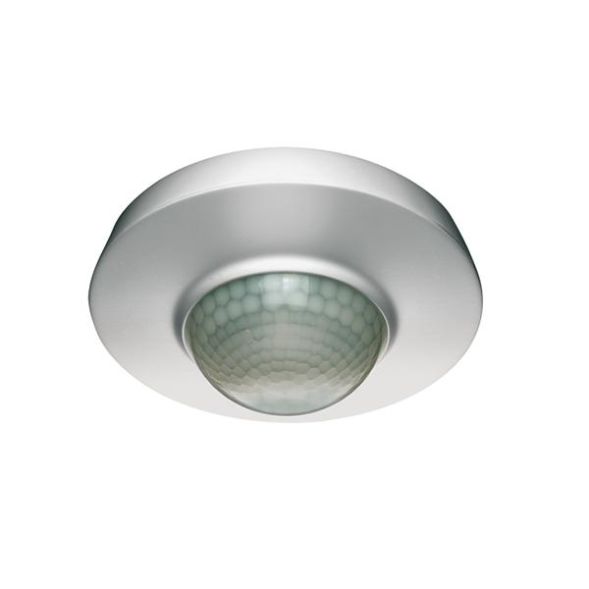

Motion detector with 360° detection range for ceiling mounting to switch the lighting as needed, thus noticeably reducing energy costs. Large range of up to 24 m in diameter for a wide range of applications. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Can be programmed via remote control, e.g. permanent light ON/OFF and automatic reading function of the current light value. Avoid incorrect operation thanks to integrated selector switch for remote control/potentiometer setting. Standard version as a flush-mounted device. Universal surface-mounted box IP 54 with 2-way membrane cable entry (accessory). Plug-in terminals with double assignment for through-wiring. Modular system consisting of power box and plug-in sensor. Install/connect power box - the sensor can simply be plugged in once the painting work is finished. Large wiring space thanks to the low height of the power box. A permanently stored factory program ensures immediate operational readiness. Additional button input for manual switching. No accidental adjustment of parameters thanks to concealed setting elements. Integrated pulse function for controlling automatic staircase lights or signaling devices and use for building technology/PLC.
| Property | Value |
| Height: | 75 mm |
| Design: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 12.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | 0 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 4.0 m |
| Max. Inrush current: | 450 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 24 m |
| Number of switching zones: | 1 |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for Response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | yes |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Diameter: | 140 mm |
| Installation depth: | 15 mm |
| Installation diameter: | 60 mm |
| Min. depth of the device box: | 15 mm |
