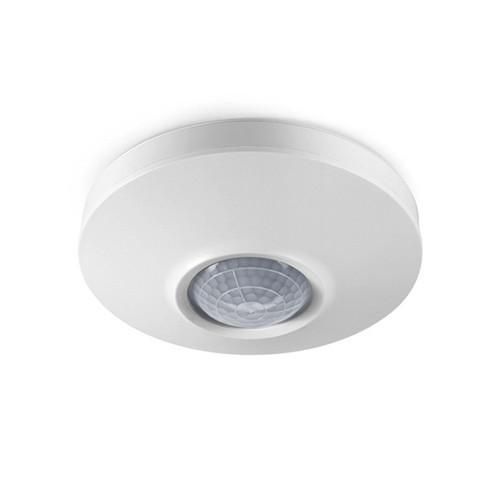

Presence detector with 360° detection range for ceiling mounting. Range of up to 8 m in diameter with a recommended mounting height of 3 m. Automatic light control of DALI electronic ballasts to a constant brightness level depending on presence and daylight (with DALI output). Easy programming via remote control or setting elements. Additional button input per channel. Reduction to 10%, 20% or 30% of the light output after the run-on time has elapsed as an orientation light for corridors and passageways. Standard version as a flush-mounted device. Surface-mounted or ceiling-mounted installation with accessories. Targeted masking of areas using the enclosed lens mask.
| Property | Value |
| Number of channels: | 1 |
| Optimal installation height: | 3.0 m |
| Color: | white |
| Design: | Presence detector |
| Mounting type: | Flush-mounted |
| KNX bus system: | no |
| Max. range to one side: | 4.0 m |
| Max. range frontal: | 2.0 m |
| Horizontal detection angle: | 180 to 360 ° |
| Min. Duty cycle: | 10 s |
| Max. Duty cycle: | 30 min |
| Vertical detection angle: | 53 to 106 ° |
| Detection field diameter on floor: | 8 m |
| Response brightness adjustable: | yes |
| Teach function for response brightness: | yes |
| Self-learning switch-off delay: | no |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | without |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| With bus connection: | yes |
| Crawl-under protection/rear field monitoring: | no |
| Animal corridor: | no |
| Transparent: | no |
| KNX radio bus system: | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
| Min. depth of the device box: | 21 mm |
Features
Number of channels
1
Operating mode switch
No
Self-learning switch-off delay
No
HAB
PD 360i/8 DALI ADR
Manufacturer
HAN
EM10210709
GTIN
4015120210709
Other bus systems
Without
Response brightness adjustable
Yes
Version
Presence detector
Surface finish
Frosted
Bus system radio bus
No
KNX bus system
No
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
Detection field diameter on floor
8m
Detection angle horizontal
180 to 360 °
Color
Radio bidirectional
No
Max. duty cycle
30 min
Max. range frontal
2.0m
Max. range to one side
4.0m
Min. duty cycle
10s
Min. depth of the device box
21 mm
With bus connection
Yes
Mounting type
Flush-mounted
Surface
Untreated
Optimal mounting height
3.0m
RAL number (similar)
9010
Teach function for response brightness
Yes
Animal corridor
No
Transparent
No
Creep protection/rear field monitoring
No
Material
Plastic
Material quality
Thermoplastic
